Home > Products > Micro Rectangular > J30 Series > J30-PCB > J30-ZKN

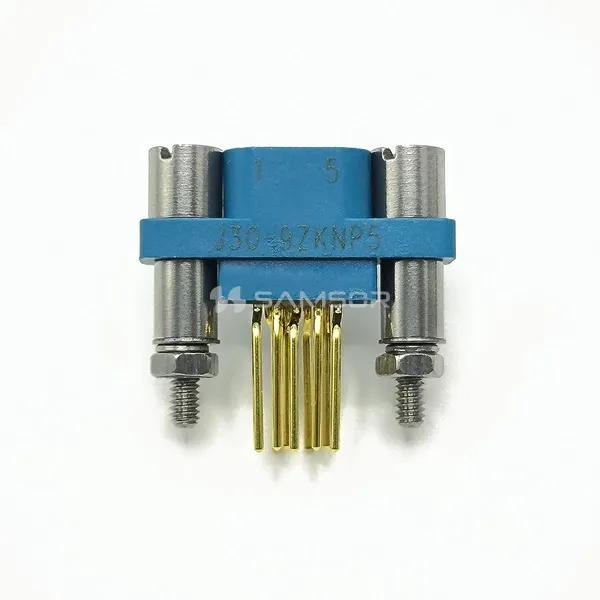

| Type | Receptacle | Contact Type | Socket / Female | Contact Layout | 9 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥1000MΩ | DWV | 800V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB2446 | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |
| Type | Receptacle | Contact Type | Socket / Female | Contact Layout | 15 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥1000MΩ | DWV | 800V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB2446 | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

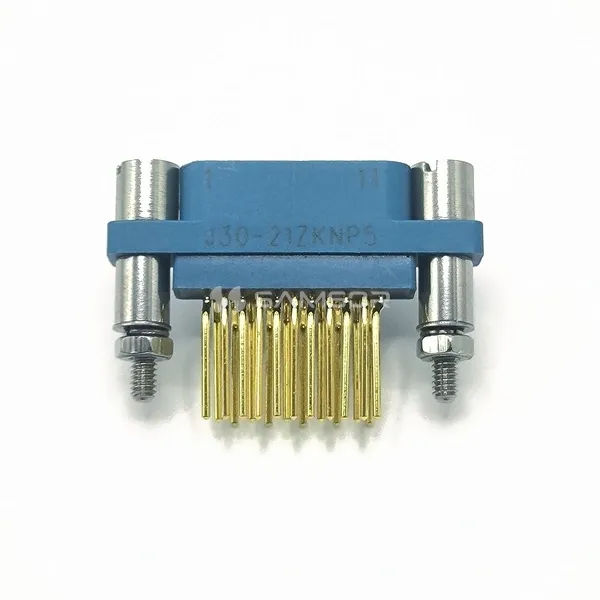

| Type | Receptacle | Contact Type | Socket / Female | Contact Layout | 21 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥1000MΩ | DWV | 800V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB2446 | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

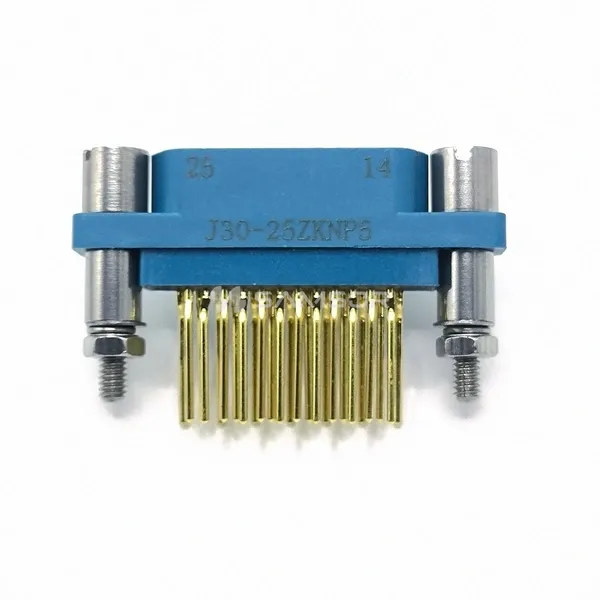

| Type | Receptacle | Contact Type | Socket / Female | Contact Layout | 25 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥1000MΩ | DWV | 800V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB2446 | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

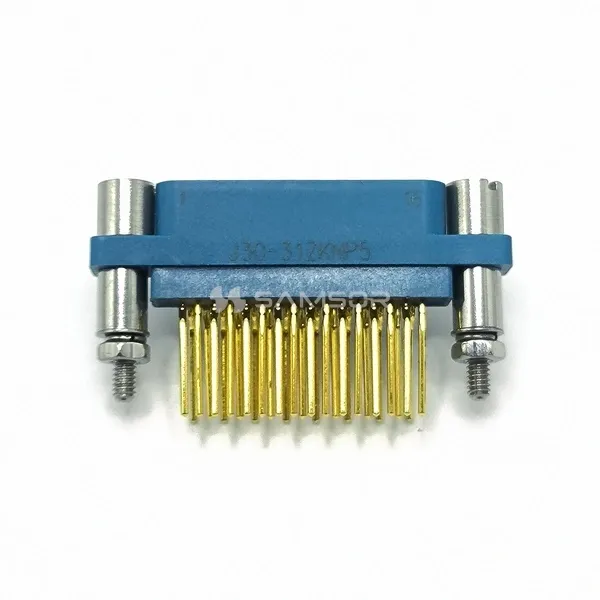

| Type | Receptacle | Contact Type | Socket / Female | Contact Layout | 31 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥1000MΩ | DWV | 800V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB2446 | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

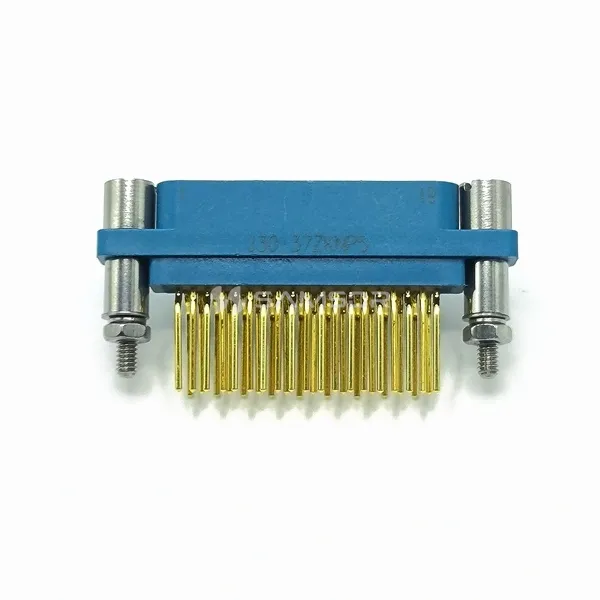

| Type | Receptacle | Contact Type | Socket / Female | Contact Layout | 37 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥1000MΩ | DWV | 800V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB2446 | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |
Connectors manufactured by Samsor meet or even exceed military standard specifications, and we continuously innovate and improve - Innovation In Every Connection
