Home > Products > Micro Rectangular > J30J Series > J30J-PCB > J30J-ZKW-J

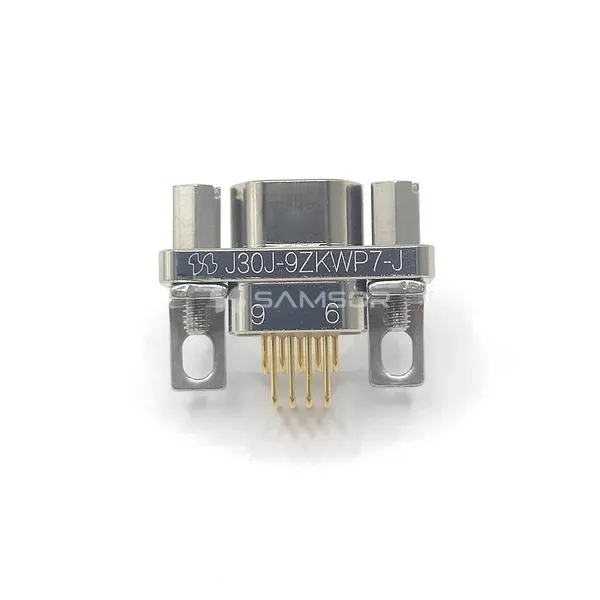

| Category | Receptacle | Contact Type | Socket / Female | Contact Layout | 9 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 800V | Connector Orientation | Horizontal |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | MIL-DTL-83513 | Salt Spray | 48h | Shell Material | Aluminum Alloy | Shell Finish | Electroless Nickel |

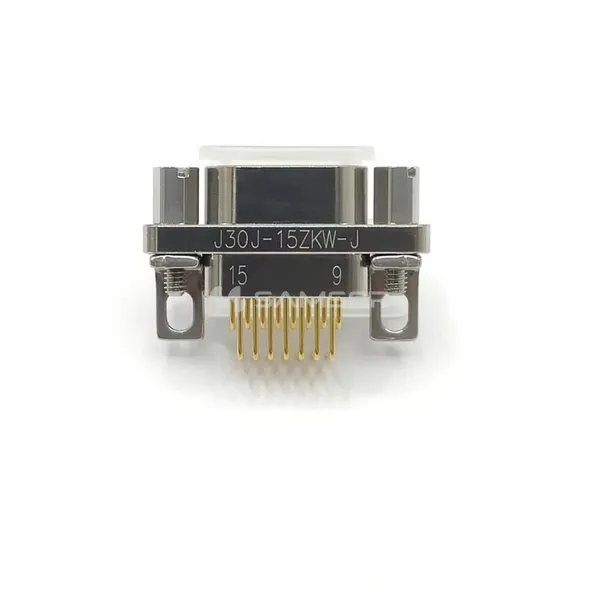

| Category | Receptacle | Contact Type | Socket / Female | Contact Layout | 15 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 800V | Connector Orientation | Horizontal |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | MIL-DTL-83513 | Salt Spray | 48h | Shell Material | Aluminum Alloy | Shell Finish | Electroless Nickel |

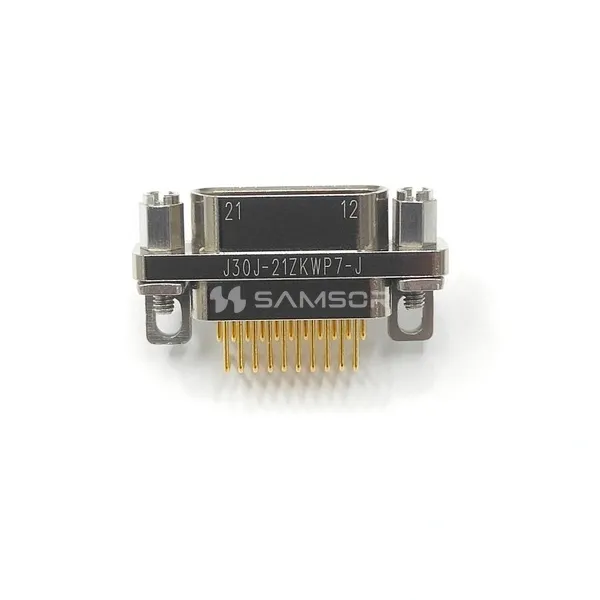

| Category | Receptacle | Contact Type | Socket / Female | Contact Layout | 21 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 800V | Connector Orientation | Horizontal |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | MIL-DTL-83513 | Salt Spray | 48h | Shell Material | Aluminum Alloy | Shell Finish | Electroless Nickel |

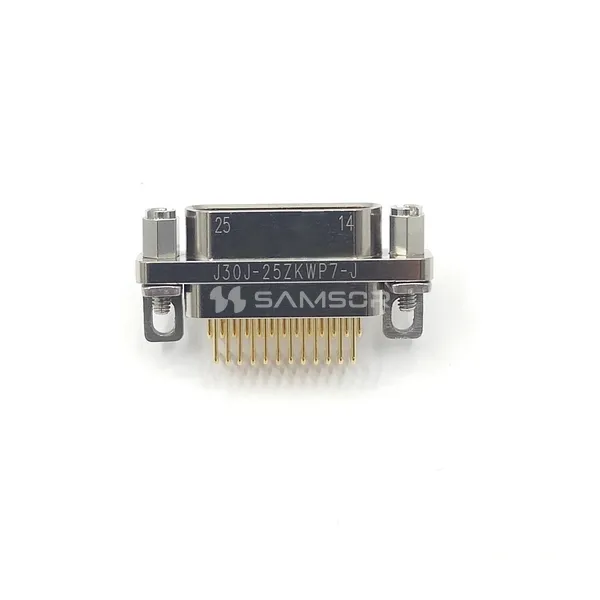

| Category | Receptacle | Contact Type | Socket / Female | Contact Layout | 25 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 800V | Connector Orientation | Horizontal |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | MIL-DTL-83513 | Salt Spray | 48h | Shell Material | Aluminum Alloy | Shell Finish | Electroless Nickel |

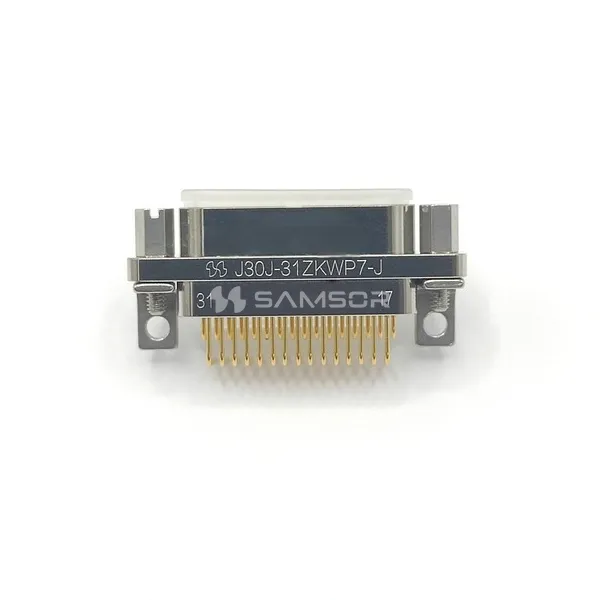

| Category | Receptacle | Contact Type | Socket / Female | Contact Layout | 31 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 800V | Connector Orientation | Horizontal |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | MIL-DTL-83513 | Salt Spray | 48h | Shell Material | Aluminum Alloy | Shell Finish | Electroless Nickel |

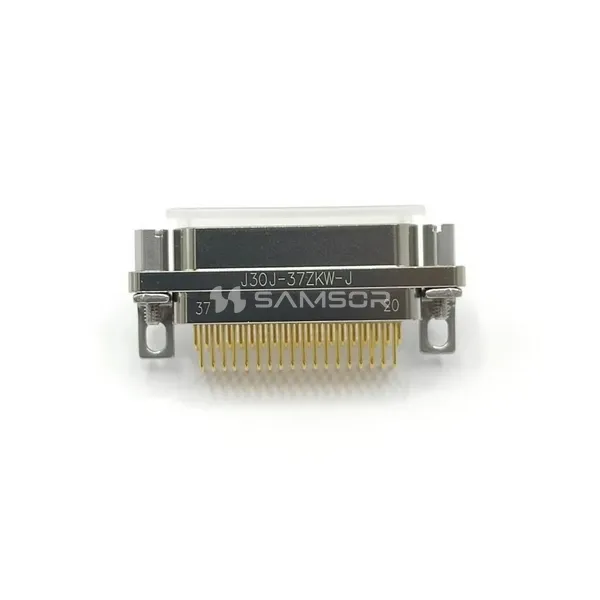

| Category | Receptacle | Contact Type | Socket / Female | Contact Layout | 37 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 800V | Connector Orientation | Horizontal |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | MIL-DTL-83513 | Salt Spray | 48h | Shell Material | Aluminum Alloy | Shell Finish | Electroless Nickel |

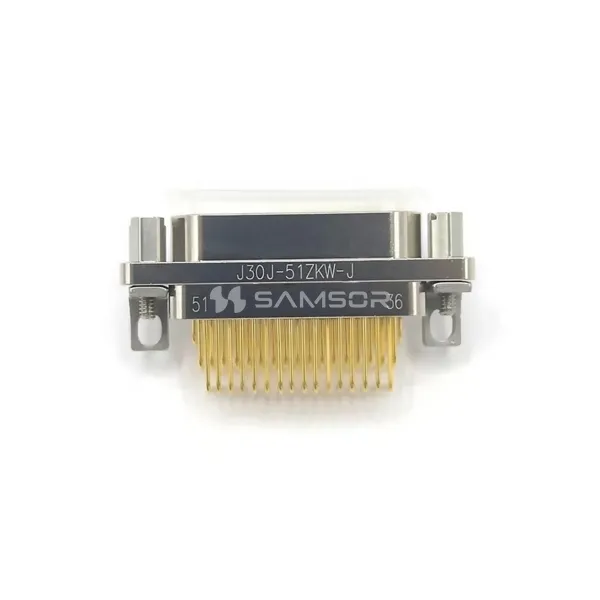

| Category | Receptacle | Contact Type | Socket / Female | Contact Layout | 51 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 800V | Connector Orientation | Horizontal |
| Vibration | 10~2000 Hz 196 m/s² | Shock | 735m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | MIL-DTL-83513 | Salt Spray | 48h | Shell Material | Aluminum Alloy | Shell Finish | Electroless Nickel |
