Home > Products > Rectangular PCB > JL Series > JL35 Series > JL35-ZJB

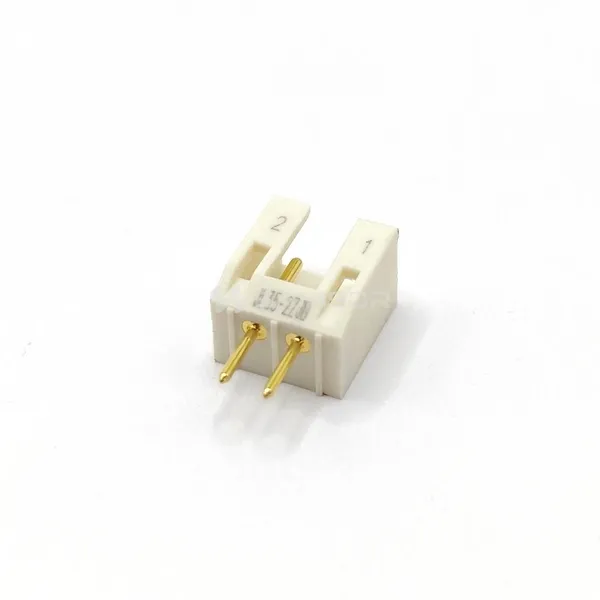

| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 2 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

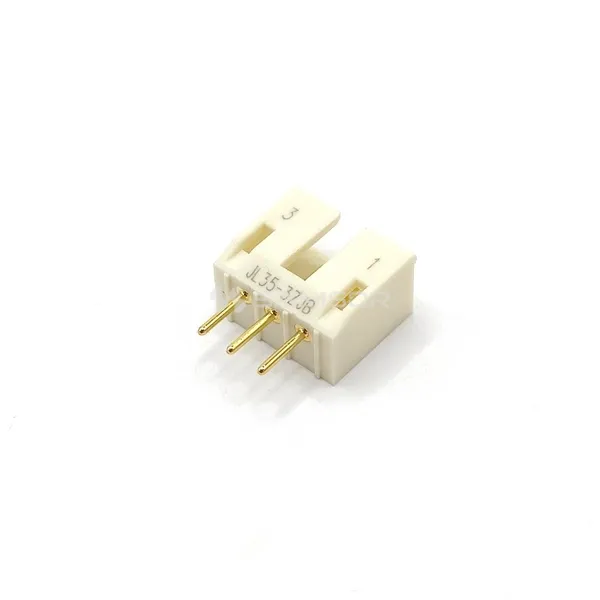

| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 3 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

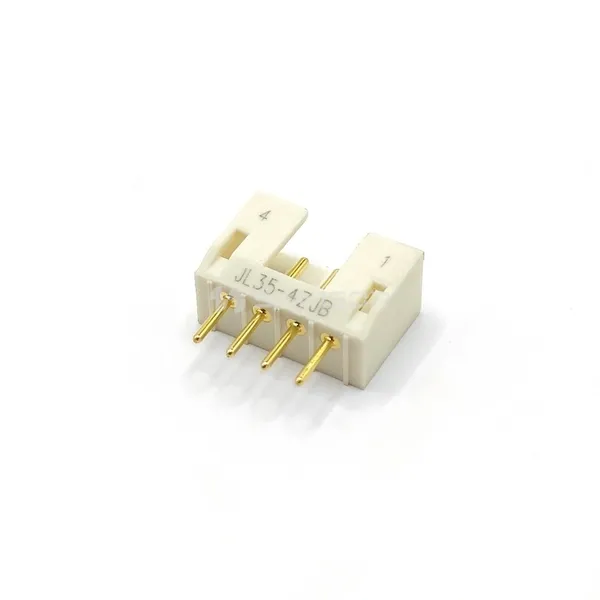

| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 4 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

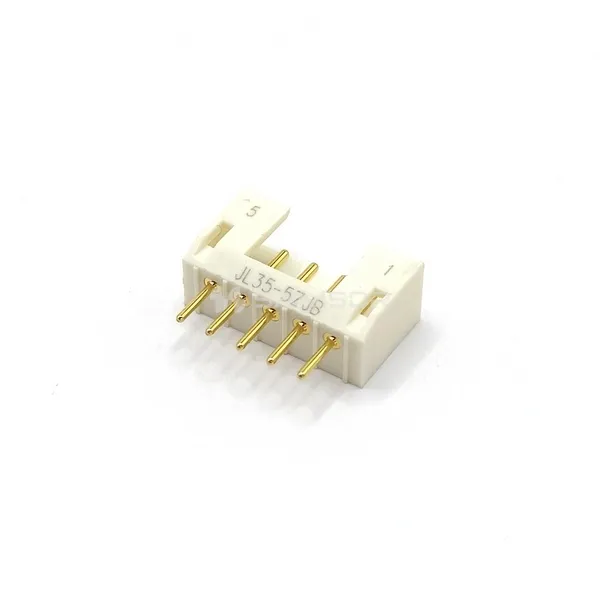

| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 5 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

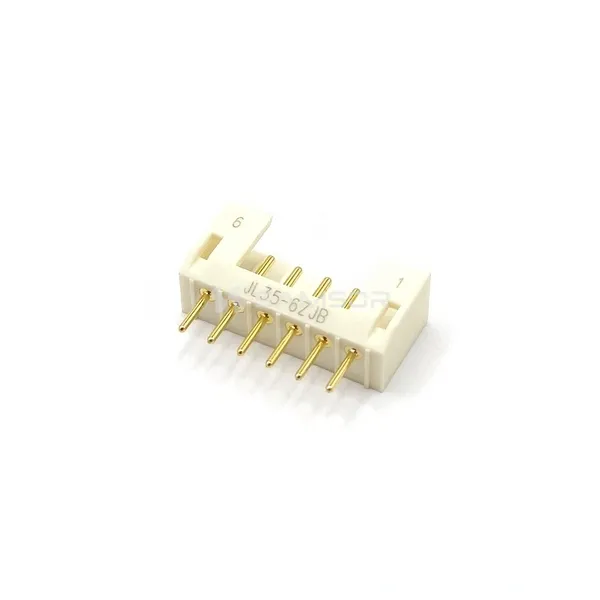

| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 6 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

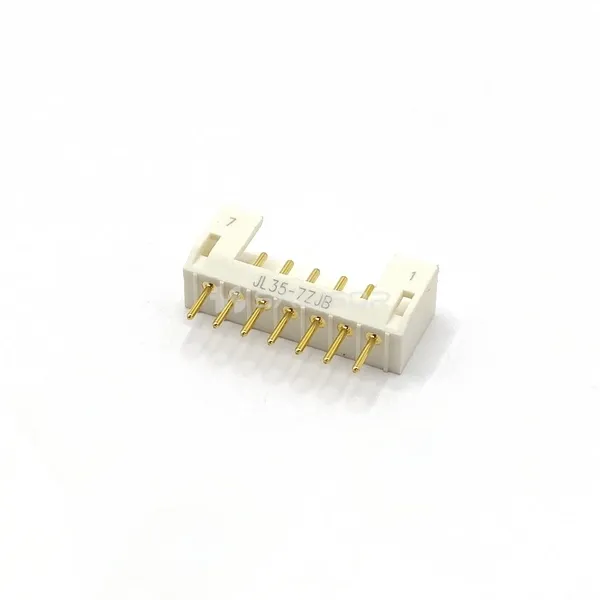

| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 7 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

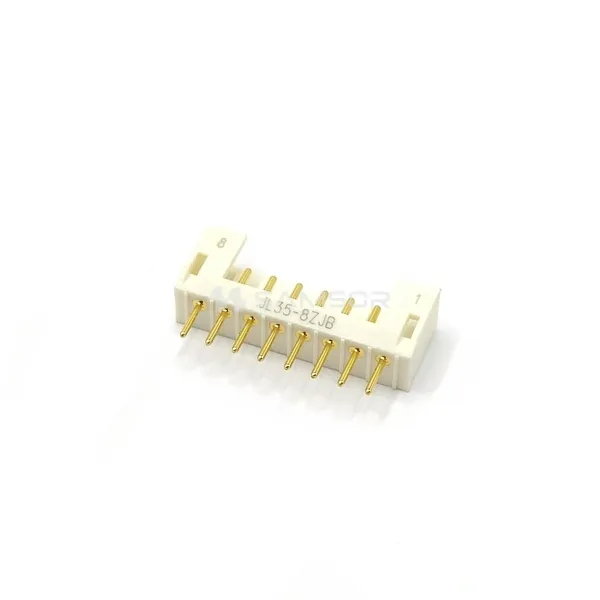

| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 8 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

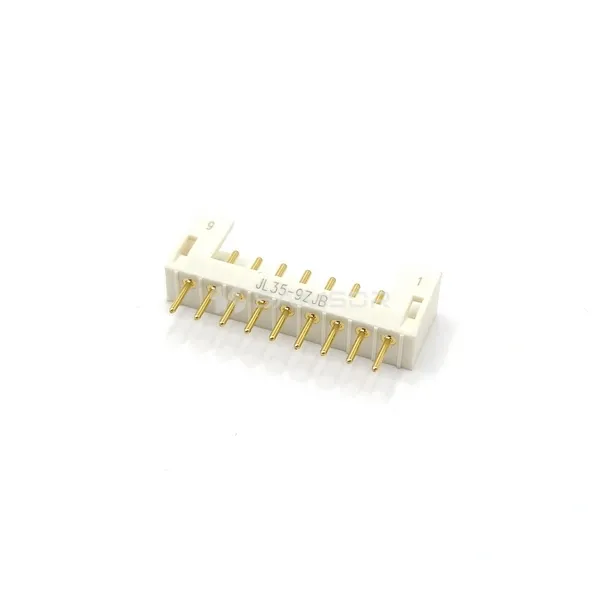

| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 9 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

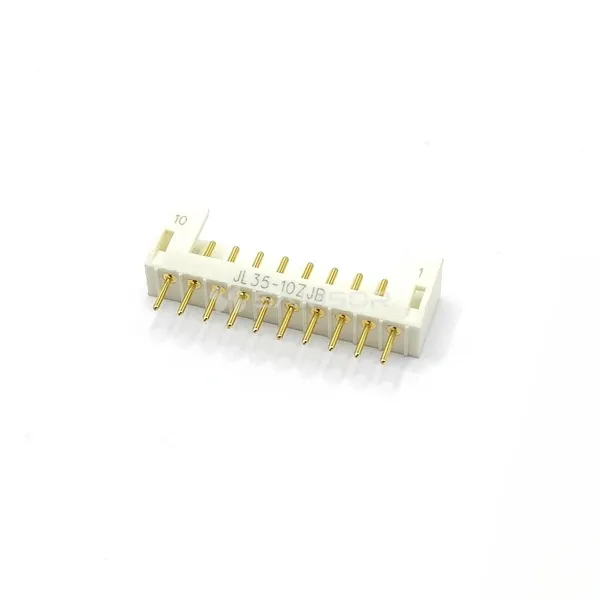

| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 10 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |
| Type | Receptacle | Contact Type | Pin/Male | Contact Layout | 11 | Termination Type | PCB |
| Current Rating | 3A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Vertical |
| Vibration | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles | |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |
