Home > Products > Rectangular PCB > JL Series > JL24 Series > JL24-TKH

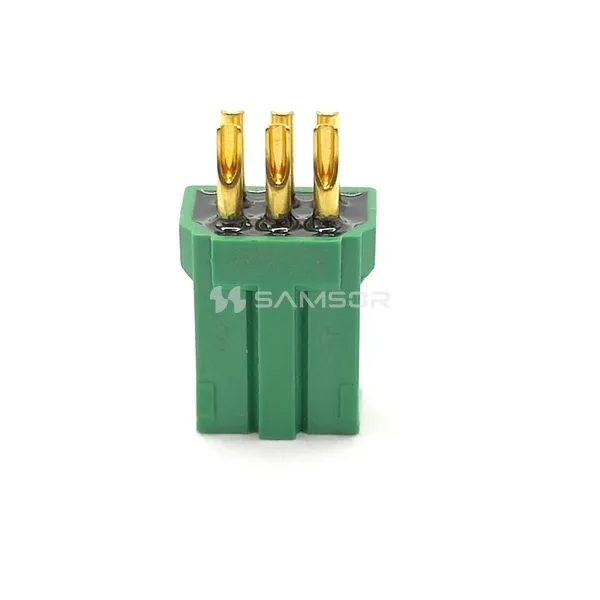

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 6 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

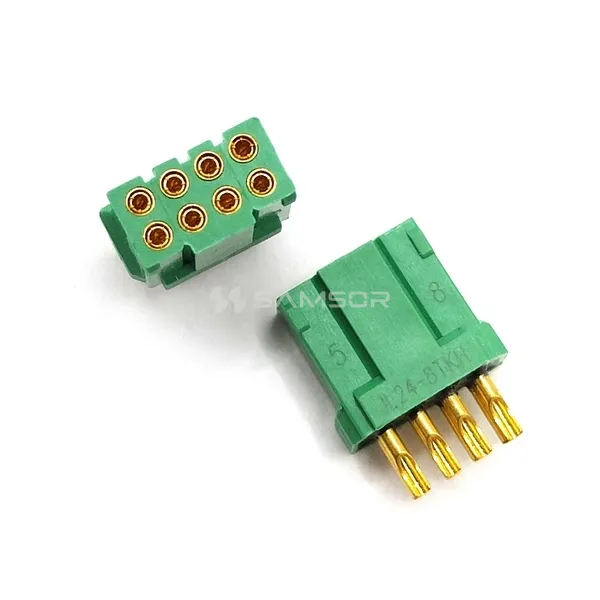

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 8 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

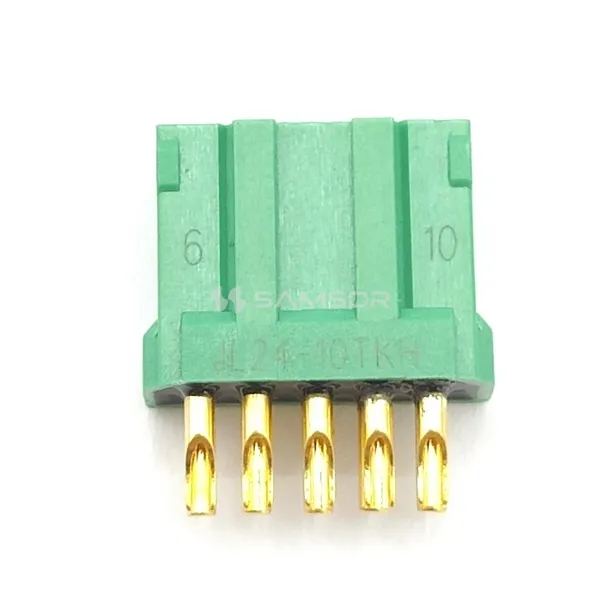

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 10 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

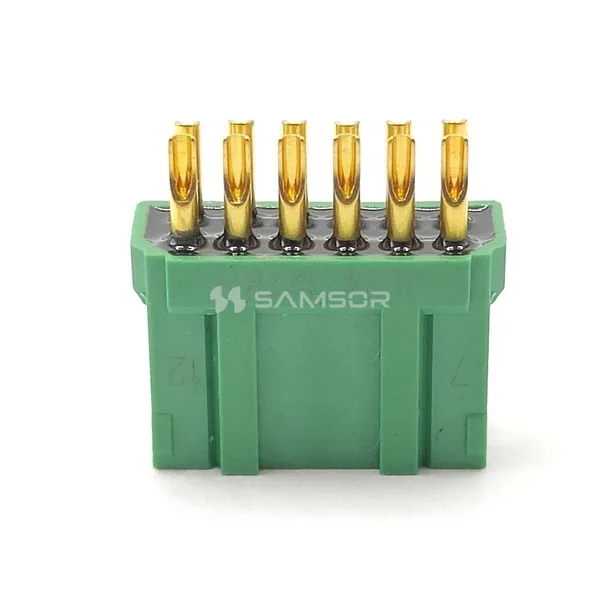

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 12 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

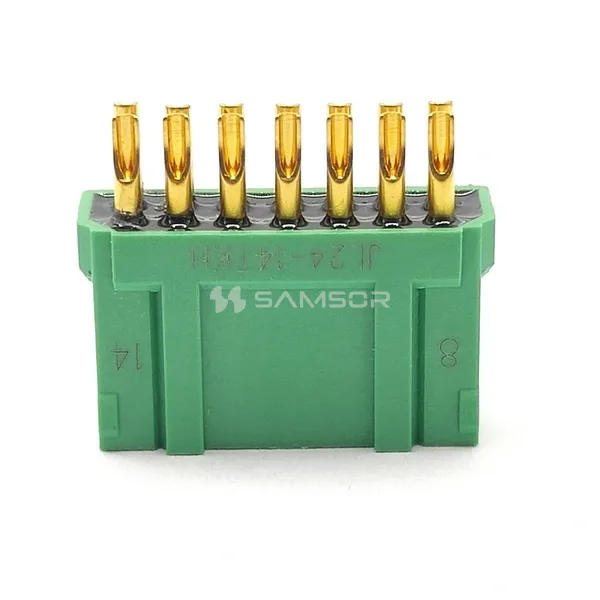

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 14 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

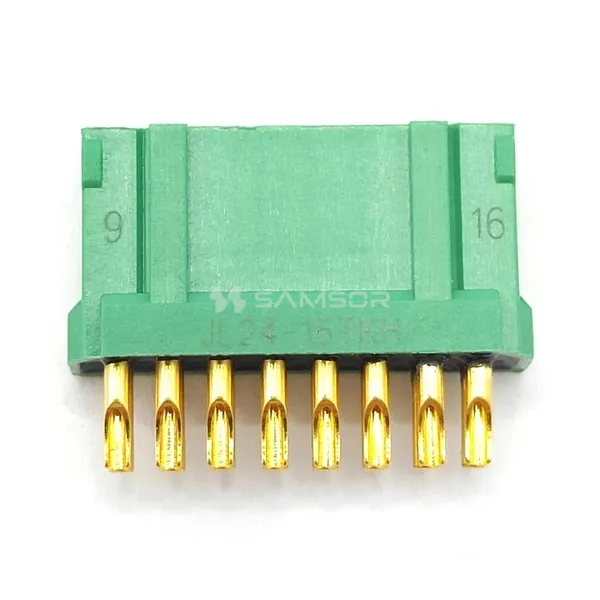

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 16 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

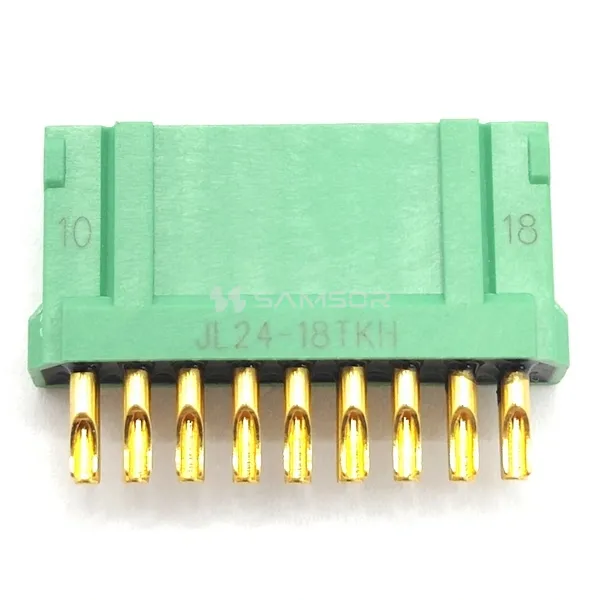

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 18 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

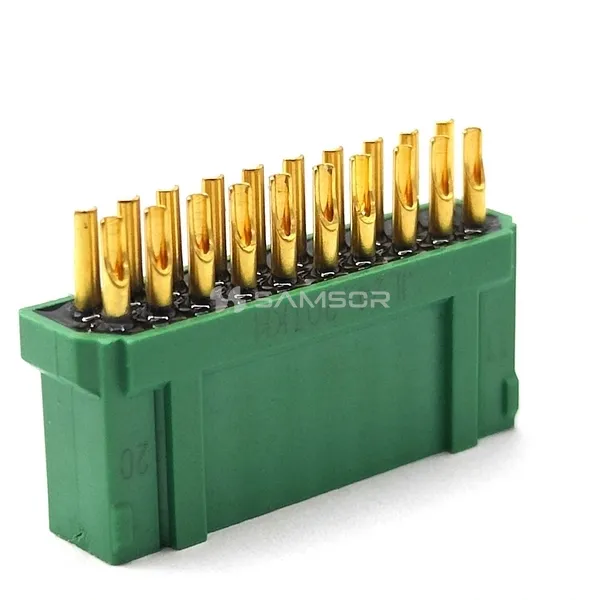

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 20 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

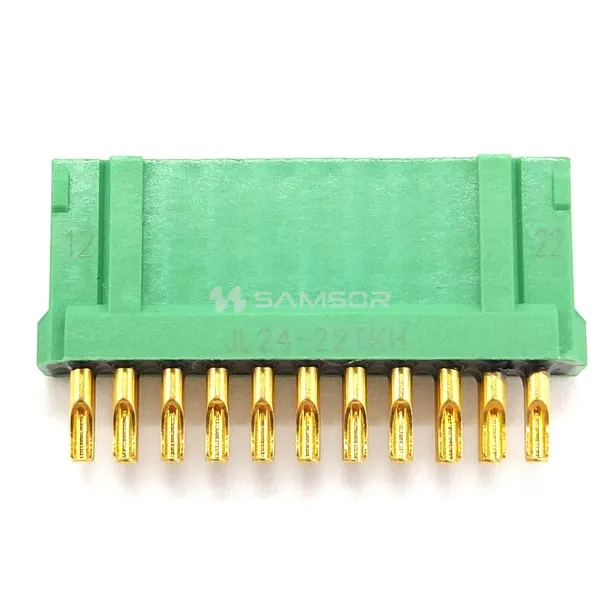

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 22 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |

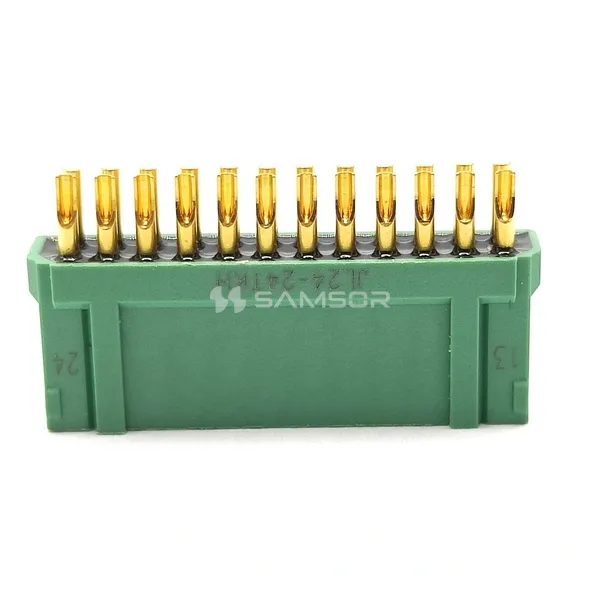

| Type | Plug | Contact Type | Socket / Female | Contact Layout | 24 | Termination Type | Solder Cup |
| Current Rating | 1A | Insulation Resistance | ≥5000MΩ | DWV | 1000V | Connector Orientation | Straight Type |
| Vibration | 10~2000 Hz 147 m/s² | Shock | 980m/s² | Operating Temperature | -55℃~125℃ | Durability | 500 cycles |
| Standard | GJB1438A | Salt Spray | 48h | Shell Material | Plastic | Shell Finish | N/A |
