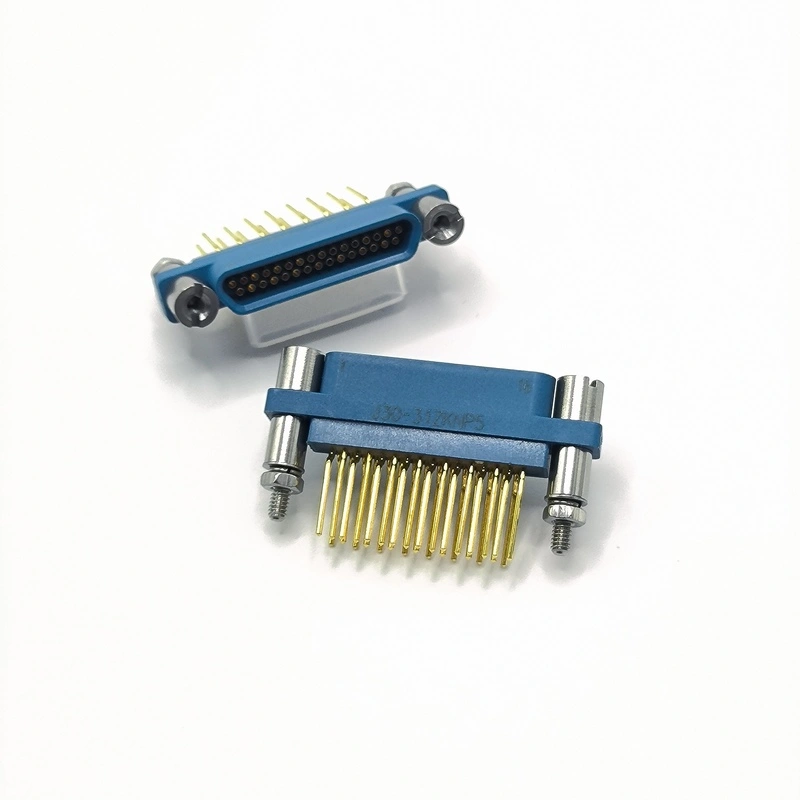

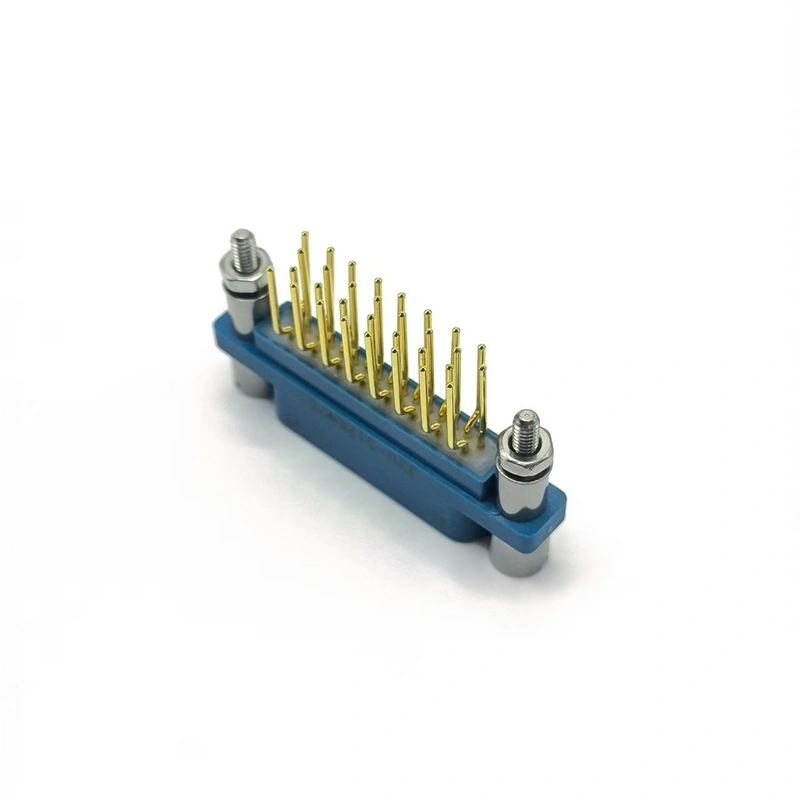

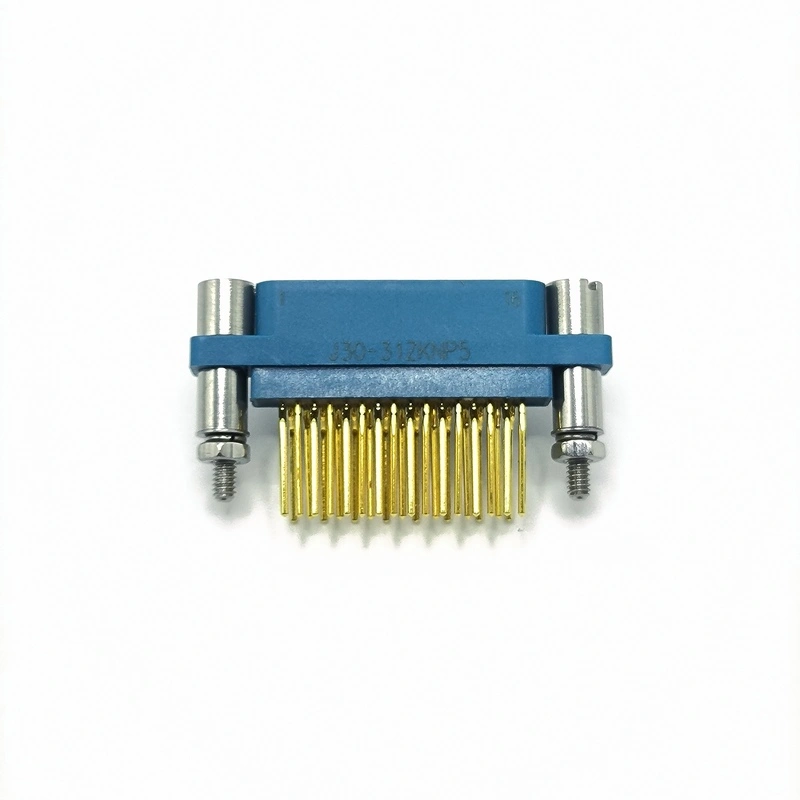

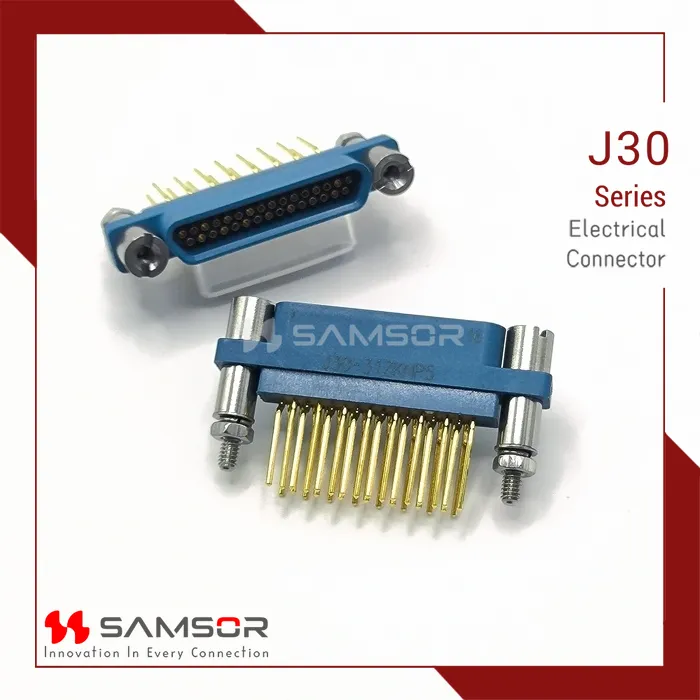

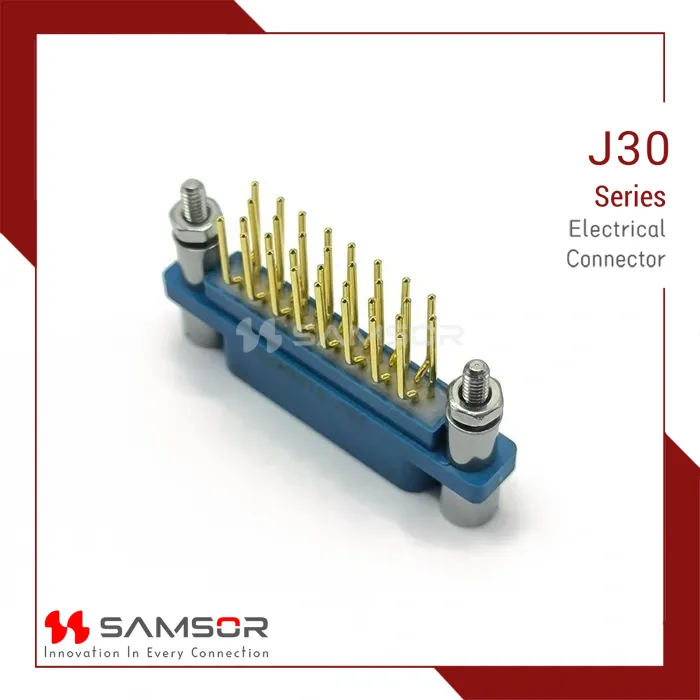

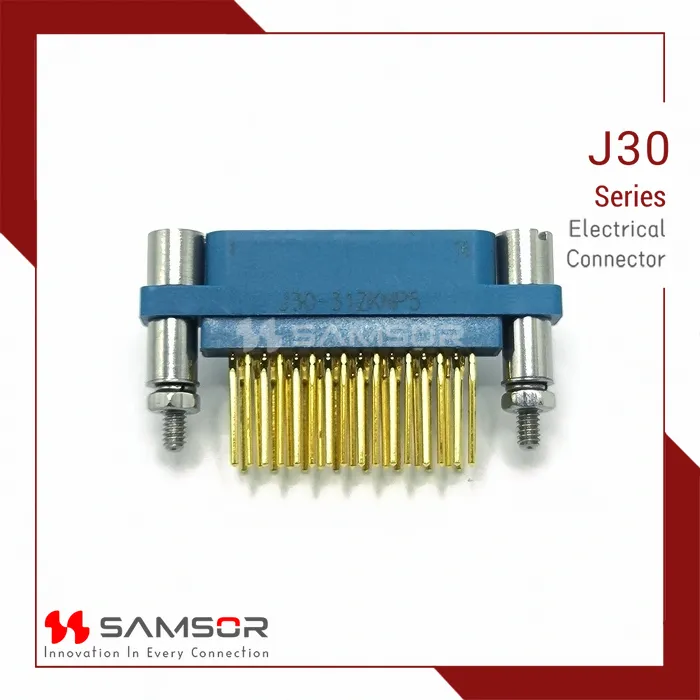

J30-31ZKNP5

Shape Factor：Micro Rectangular
Category：Receptacle
Termination Type：PCB
Contact Layout：31
Current Rating：3A
Insulation Resistance：≥1000MΩ
DWV：800V
Operating Temperature：-55℃~125℃
Standard：GJB2446

Connector Orientation：Vertical
Contact Type：Socket / Female
Contact Pitch：2.54mm
Shell Material：Plastic
Shell Finish：N/A
Salt Spray：48h
Vibration：10~2000 Hz 196 m/s²
Shock：735m/s²
Durability：500 cycles

Chat Now Inquiry 3D Model

Overview
Related Products
Downloads
FAQ
Videos

∎ J30 Series Introduction

● Plastic material housing

● Number of Contacts: 9, 15, 21, 25, 31, 37 and 51 pins

● Adopts stranded-wire elastic contact pins (TwistPin) with a 1.27mm pitch, offering high contact density and more reliable performance

● Suitable for conductor cross-sectional areas from 0.07 mm² to 0.15 mm². Thinner conductor require modification. Default Supply: 0.12 mm² white high-temperature resistant silver-plated wrapped wire

● The product complies with GJB2446A requirements (equivalent to U.S. Military Standard MIL-C-83513), implemented per enterprise standard: Q/SS 106-2017

∎ Performance Specifications
Operating Temperature: -55℃～+125℃	Vibration: 10Hz～2000Hz 196m/s²
Random vibration: Power density 0.4G²/Hz. The total acceleration-root-mean square is 23.1G	Shock: 735m/s² 11ms
Rated Current: 3A	Contact Resistance: ≤10mΩ
Insulation Resistance: ≥5000MΩ	Dielectric Withstand Voltage: 800V
Durability: 500 times
