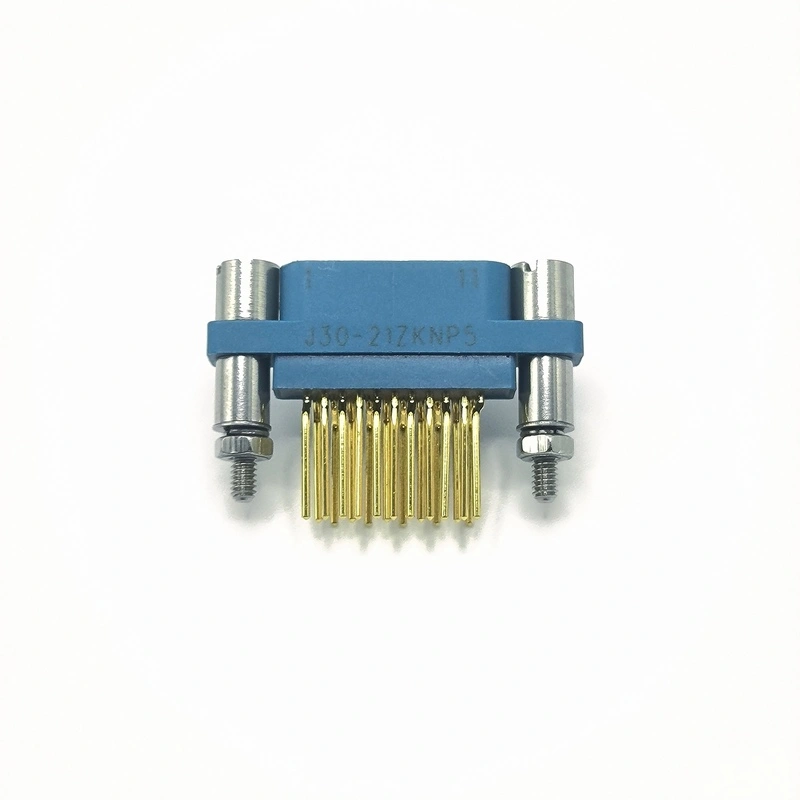

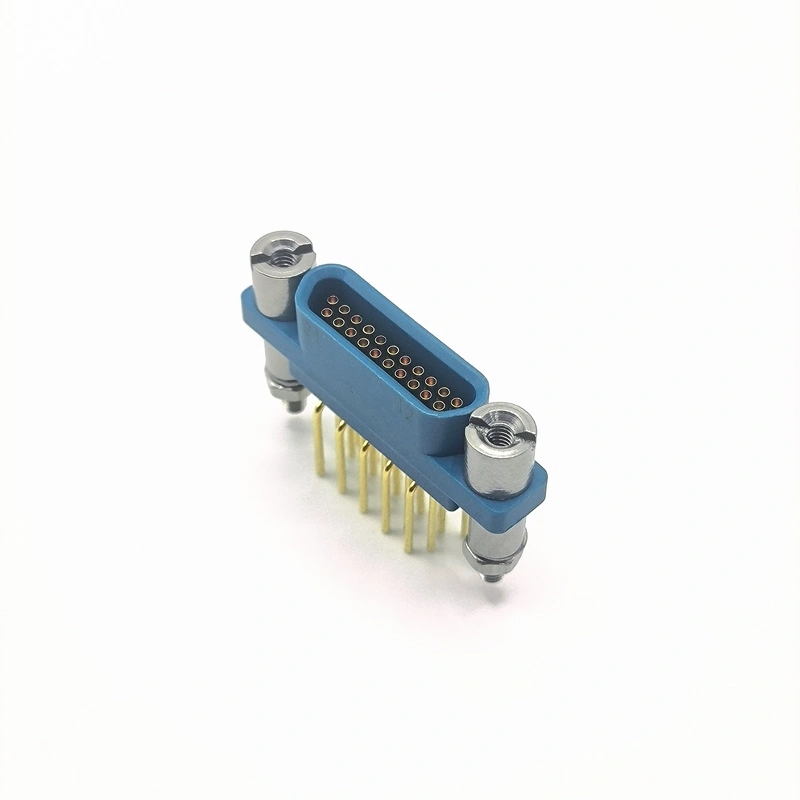

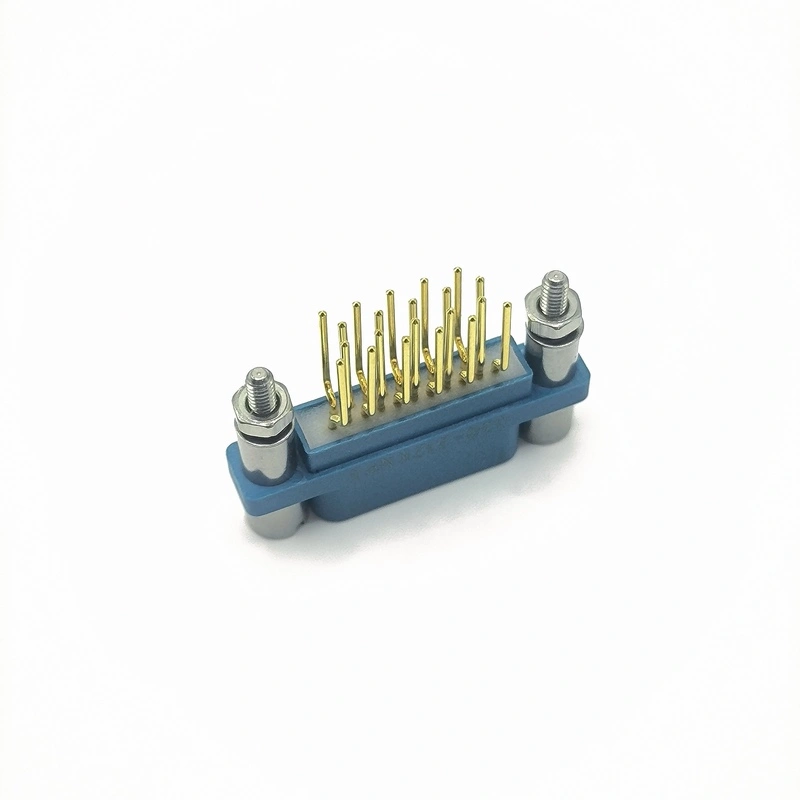

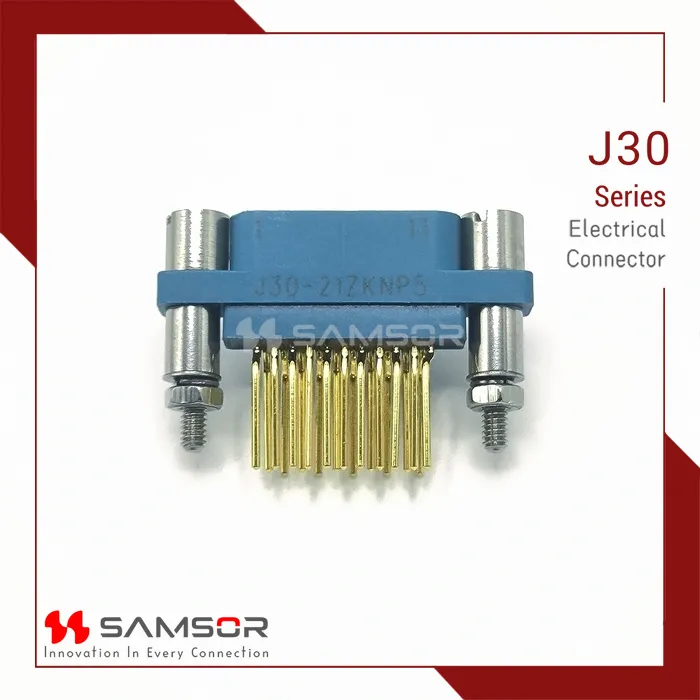

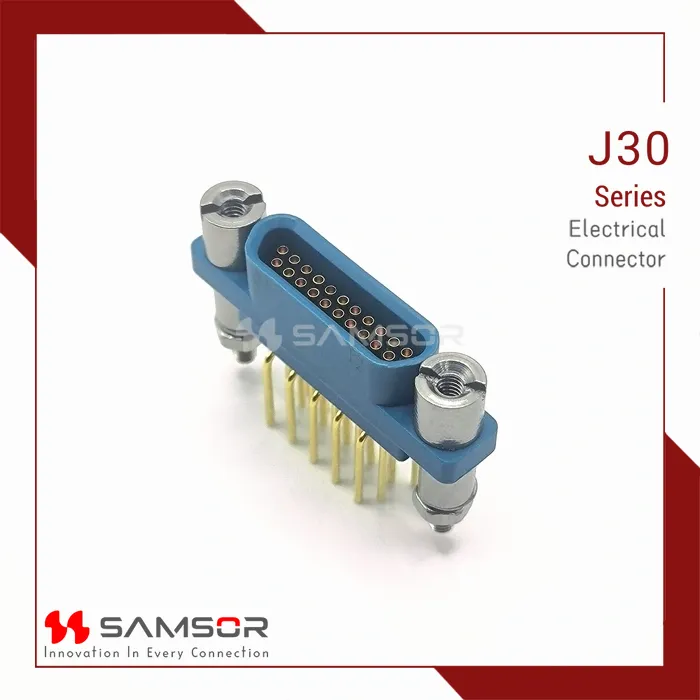

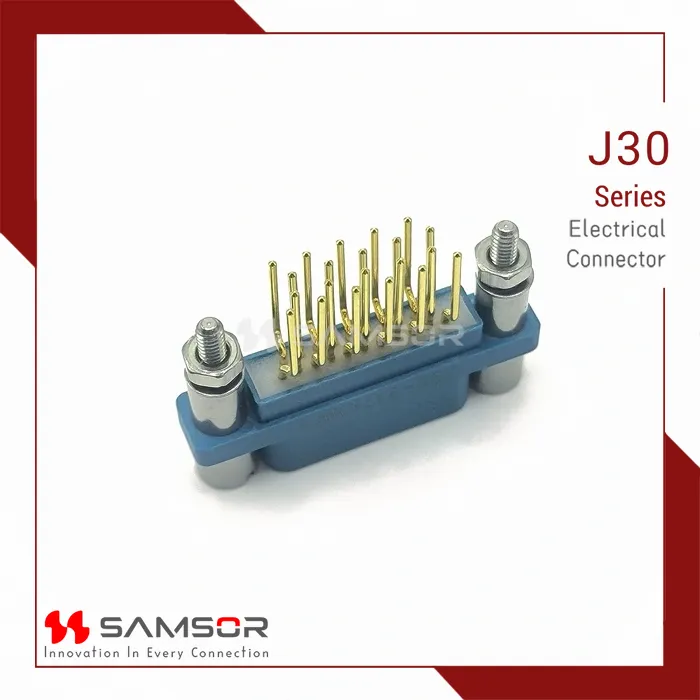

J30-21ZKNP5| ∎ J30 Series Introduction |
| ● Plastic material housing |
| ● Number of Contacts: 9, 15, 21, 25, 31, 37 and 51 pins |
| ● Adopts stranded-wire elastic contact pins (TwistPin) with a 1.27mm pitch, offering high contact density and more reliable performance |
| ● Suitable for conductor cross-sectional areas from 0.07 mm² to 0.15 mm². Thinner conductor require modification. Default Supply: 0.12 mm² white high-temperature resistant silver-plated wrapped wire |
| ● The product complies with GJB2446A requirements (equivalent to U.S. Military Standard MIL-C-83513), implemented per enterprise standard: Q/SS 106-2017 |
| ∎ Performance Specifications | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz 196m/s² |
| Random vibration: Power density 0.4G²/Hz. The total acceleration-root-mean square is 23.1G | Shock: 735m/s² 11ms |
| Rated Current: 3A | Contact Resistance: ≤10mΩ |
| Insulation Resistance: ≥5000MΩ | Dielectric Withstand Voltage: 800V |
| Durability: 500 times | |
| ∎ Contact Arrangement (Face View Pin Connector) |
|
| ∎ How to Order |
|
| ∎ Dimensions |
|
| ∎ Hardware |
|
| ∎ PCB Layouts |
|
