SM80-4055005
- Shape Factor：Rectangular PCB
- Category：Plug
- Termination Type：PCB
- Contact Layout：50
- Current Rating：3A
- Insulation Resistance：≥5000MΩ
- DWV：1200V
- Operating Temperature：-55℃~125℃
- Standard：MIL-DTL-55302
- Connector Orientation：Vertical
- Contact Type：Socket / Female
- Contact Pitch：2mm
- Shell Material：Plastic
- Shell Finish：N/A
- Salt Spray：96h
- Vibration：10~2000 Hz 147 m/s²
- Shock：980m/s²
- Durability：500 cycles
- Overview
- Related Products
- Downloads
- FAQ
- Videos

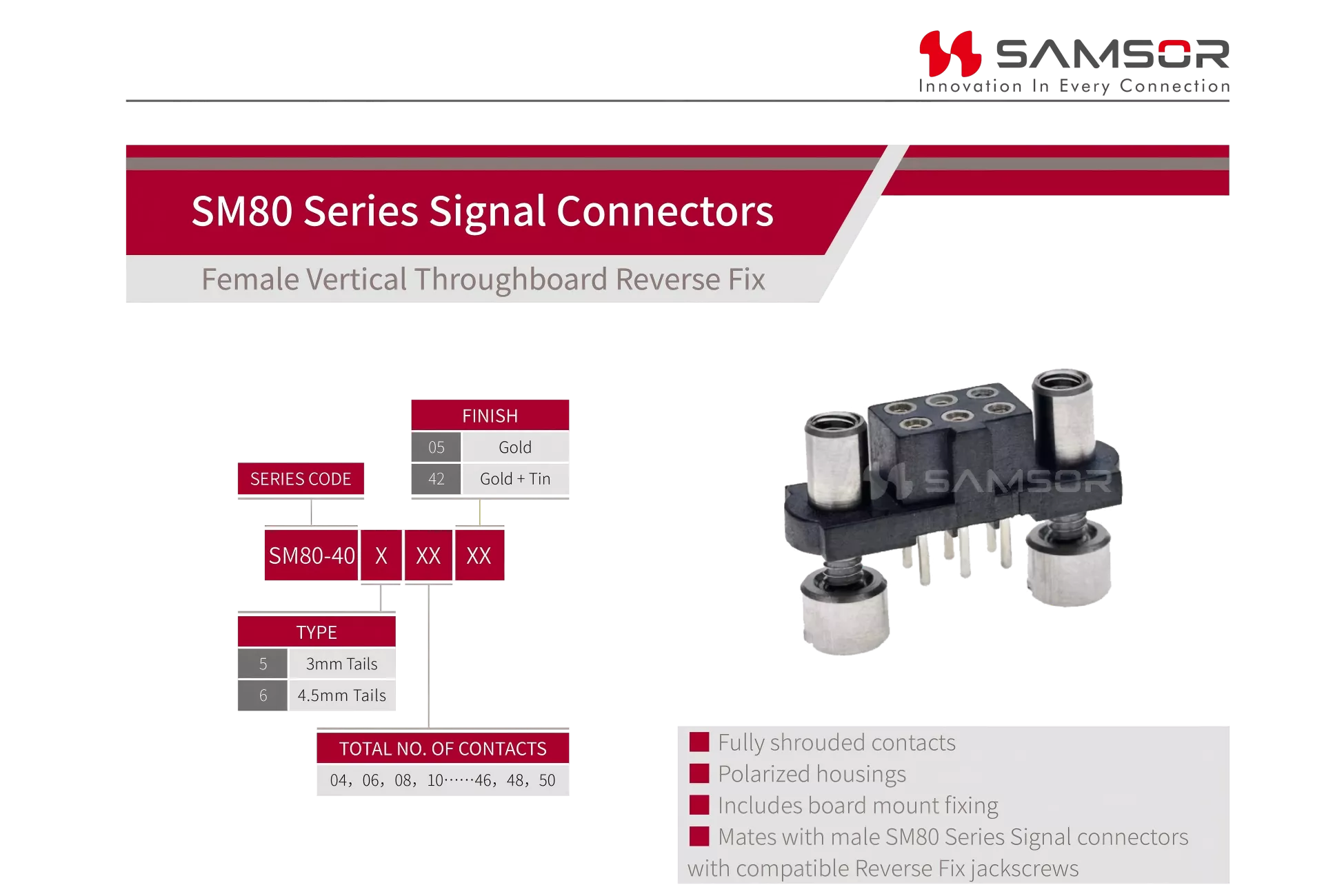

| ∎ SM80 Series Introduction |
| ● The product has a pin pitch of 2.00mm. The shell is made of PPS, and locking parts are 316 stainless steel, featuring compact size and light weight. |
| ● It adopts Φ0.5mm copper alloy pins and beryllium copper sockets with gold-plated contacts for reliable performance. |
| ● By function: signal contacts, power contacts, coaxial contacts and mixed layout types. |
| ● By installation: board-to-board, board-to-wire, wire-to-wire. |
| ● By locking type: screw nut locking, quick lock accessories, guide pin & guide hole, latch locking. |
| ● Compliant with MIL-DTL-55302 standard, interchangeable with Nicomatic and Harwin equivalent products. |
| ∎ Performance Specifications (SM80-Signal) | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz, acceleration 147m/s, interruption duration≤1µs |
| Rated Current: 3A | Shock: 980m/s² Interruption duration≤1µs |
| Insulation Resistance: ≥1000MΩ | Contact Resistance: ≤20mΩ |
| Durability: 500 times | Dielectric Withstand Voltage: 1200V(AC) |
| ∎ How to Order |
|

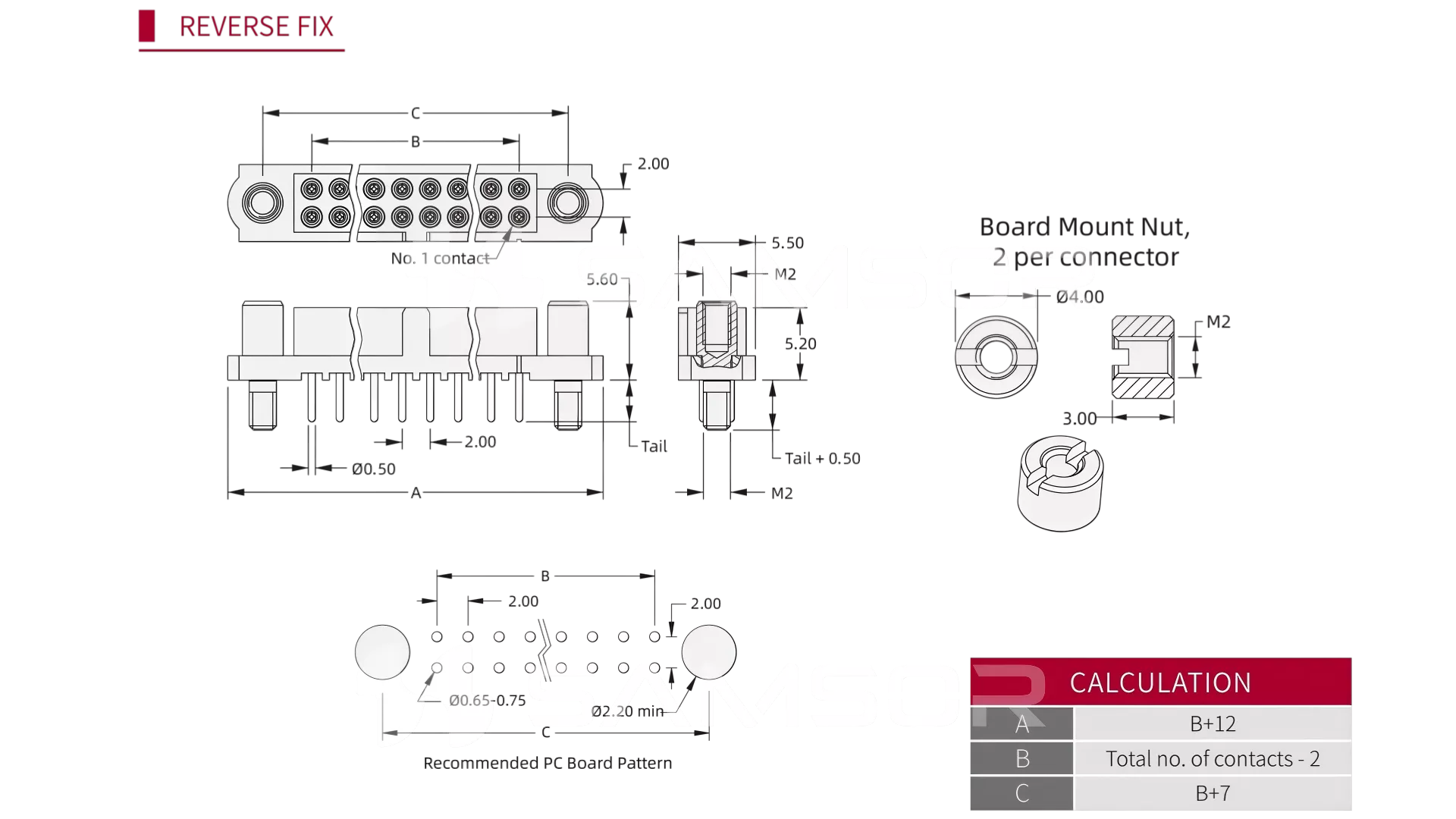

| ∎ Dimensions |
|
