SM80-263F104-04-00
  • SM80-263F104-04-00

samsor_logoSM80-263F104-04-00

    • Shape Factor：Rectangular PCB
    • Category：Housing
    • Termination Type：Solder/Crimp
    • Contact Layout：4Power/Coax+4Signal
    • Current Rating：N/A
    • Insulation Resistance：≥5000MΩ
    • DWV：1000V
    • Operating Temperature：-55℃~125℃
    • Standard：MIL-DTL-55302
    • Connector Orientation：Straight Type
    • Contact Type：Socket / Female
    • Contact Pitch：Mixed
    • Shell Material：Plastic
    • Shell Finish：N/A
    • Salt Spray：96h
    • Vibration：10~2000 Hz 147 m/s²
    • Shock：980m/s²
    • Durability：500 cycles
    Chat Now Inquiry 3D Model
    • Overview
    • Related Products
    • Downloads
    • FAQ
    • Videos
    ∎ SM80 Series  Introduction
    ● The product has a pin pitch of 2.00mm. The shell is made of PPS, and locking parts are 316 stainless steel, featuring compact size and light weight.
    ● It adopts Φ0.5mm copper alloy pins and beryllium copper sockets with gold-plated contacts for reliable performance.
    ● By function: signal contacts, power contacts, coaxial contacts and mixed layout types.
    ● By installation: board-to-board, board-to-wire, wire-to-wire.
    ● By locking type: screw nut locking, quick lock accessories, guide pin & guide hole, latch locking.
    ● Compliant with MIL-DTL-55302 standard, interchangeable with Nicomatic and Harwin equivalent products.


    ∎ How to Order

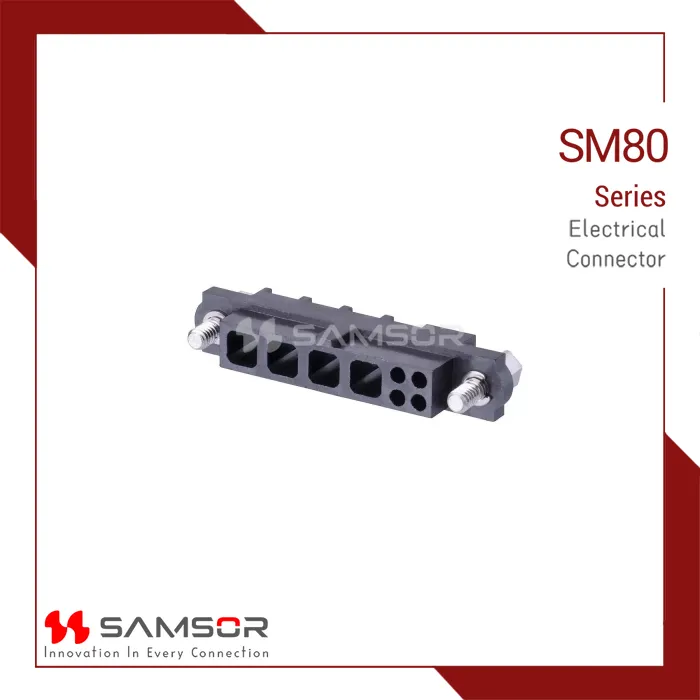

    SM80-263F104-04-00(pic1)


    ∎ Dimensions

    SM80-263F104-04-00(pic2)
