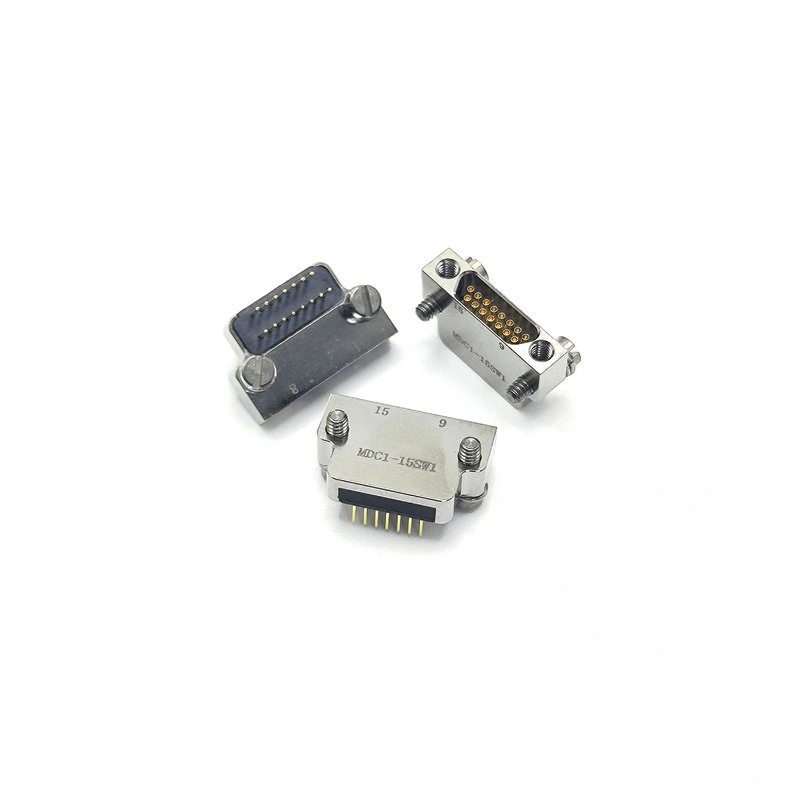

NMD-15SW1 SW2 SW3| ∎ NMD Series Introduction |
| ● Adopts stranded-wire elastic contact pins (TwistPin) |
| ● 1.00mm pitch, high contact density, providing more reliable performance |
| ● Number of Contacts: Available in ten configurations with 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins |
| ● The cross-sectional area of the conductor is 0.1mm², default Supply yellow high-temperature silver-plated wrapped wire |
| ● Metal shell, high density, high reliability |
| ● Product complies with GJB2446A requirements, implemented per enterprise standard: Q/SS104-2017 |
| ∎ Performance Specifications | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz 196m/s² |
| Low Pressure: 4.4KPa, 150V | Shock: 490m/s² 11ms |
| Rated Current: 2A max | Contact resistance: ≤12mΩ |
| Insulation Resistance: ≥5000MΩ | Dielectric Withstand Voltage: 500V |
| Durability：500 times | Relative humidity: +40℃, 98% |
| ∎ Contact Arrangement (Face View Pin Connector) |
|
| ∎ How to Order |
|
| ∎ Dimensions |
|
| ∎ Hardware |
|
| ∎ PCB Layouts |
|
