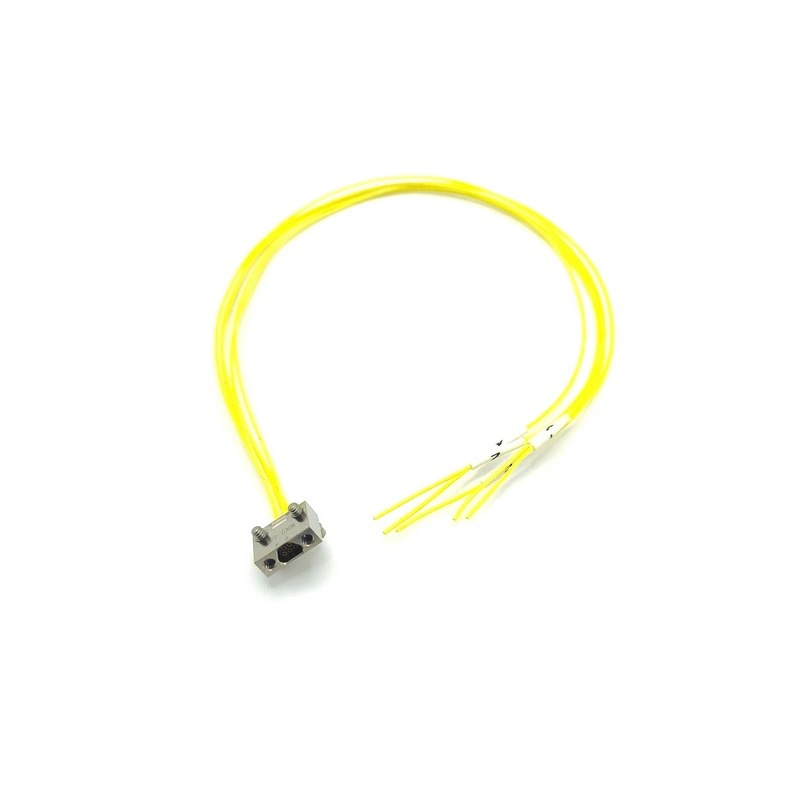

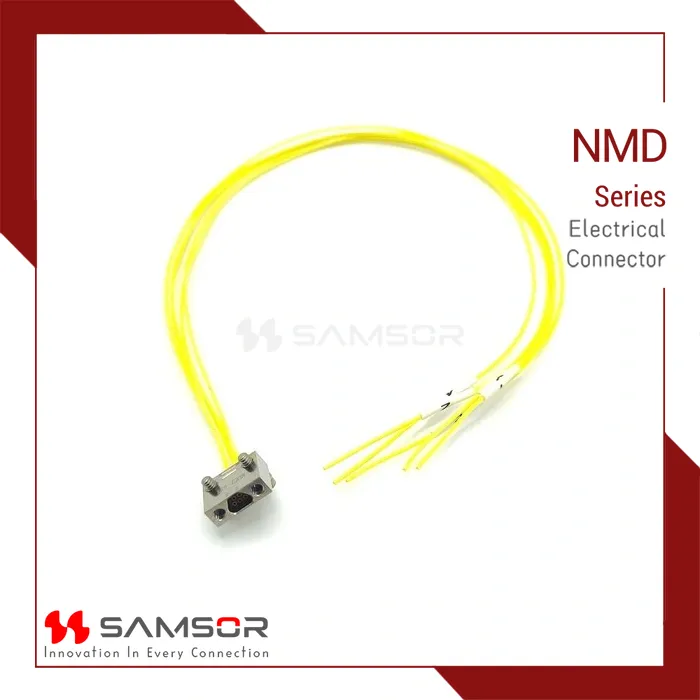

NMD-5S1
  • NMD-5S1

samsor_logoNMD-5S1

    • Shape Factor：Micro Rectangular
    • Category：Receptacle
    • Termination Type：Pre-Wired
    • Contact Layout：5
    • Current Rating：2A
    • Insulation Resistance：≥5000MΩ
    • DWV：500V
    • Operating Temperature：-55℃~125℃
    • Standard：GJB2446
    • Connector Orientation：Horizontal
    • Contact Type：Socket / Female
    • Contact Pitch：1mm
    • Shell Material：Aluminum Alloy
    • Shell Finish：Electroless Nickel
    • Salt Spray：48h
    • Vibration：10~2000 Hz 196 m/s²
    • Shock：490m/s²
    • Durability：500 cycles
    Chat Now Inquiry 3D Model
    • Overview
    • Related Products
    • Downloads
    • FAQ
    • Videos
    ∎ NMD Series Introduction
    ● Adopts stranded-wire elastic contact pins (TwistPin)
    ● 1.00mm pitch, high contact density, providing more reliable performance
    ● Number of Contacts: Available in ten configurations with 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 pins
    ● The cross-sectional area of the conductor is 0.1mm², default Supply yellow high-temperature silver-plated wrapped wire
    ● Metal shell, high density, high reliability
    ● Product complies with GJB2446A requirements, implemented per enterprise standard: Q/SS104-2017


    ∎ Performance Specifications
    Operating Temperature: -55℃～+125℃Vibration: 10Hz～2000Hz 196m/s²
    Low Pressure: 4.4KPa, 150VShock: 490m/s² 11ms
    Rated Current: 2A maxContact resistance: ≤12mΩ
    Insulation Resistance: ≥5000MΩDielectric Withstand Voltage: 500V
    Durability：500 timesRelative humidity: +40℃, 98%


    ∎ Contact Arrangement (Face View Pin Connector)

    NMD-5S1(pic1)


    ∎ How to Order

    NMD-5S1(pic2)


    ∎ Dimensions

    NMD-5S1(pic3)


    ∎ Hardware

    NMD-5S1(pic4)
