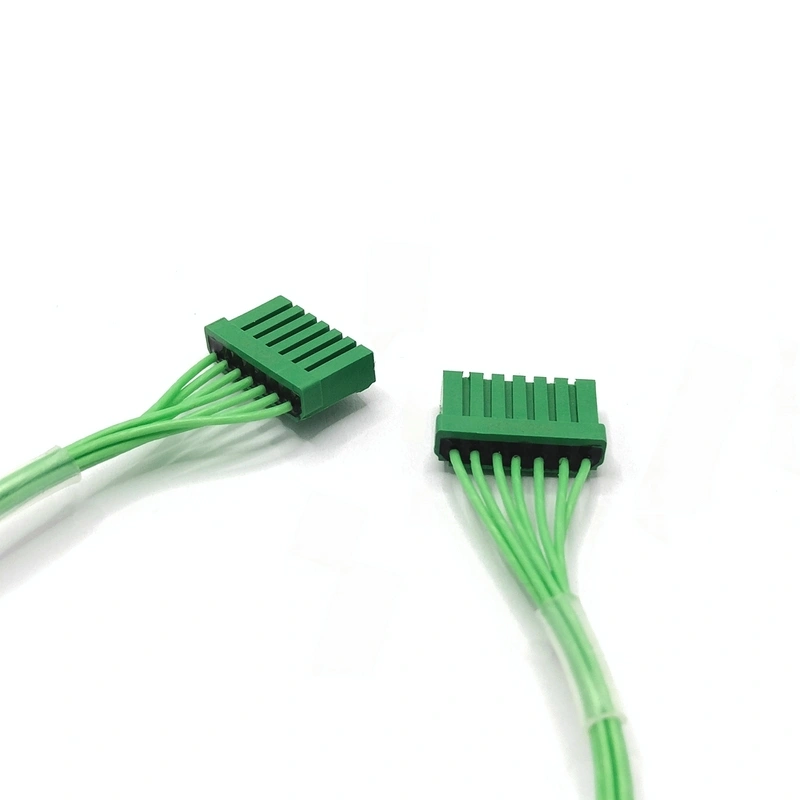

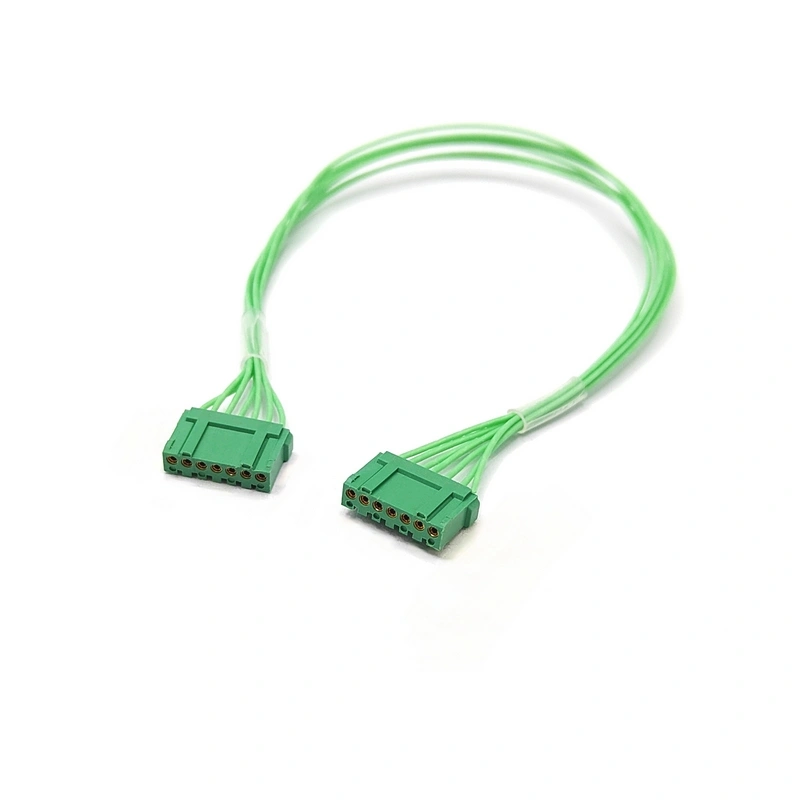

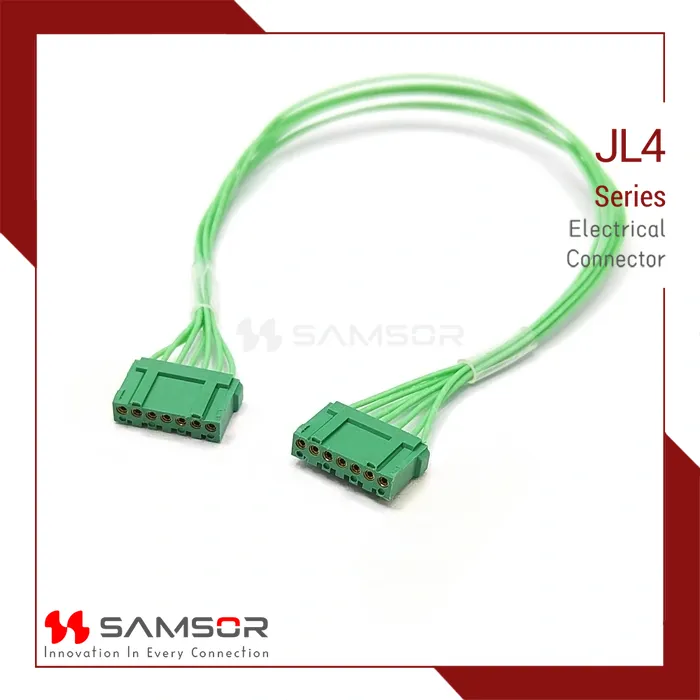

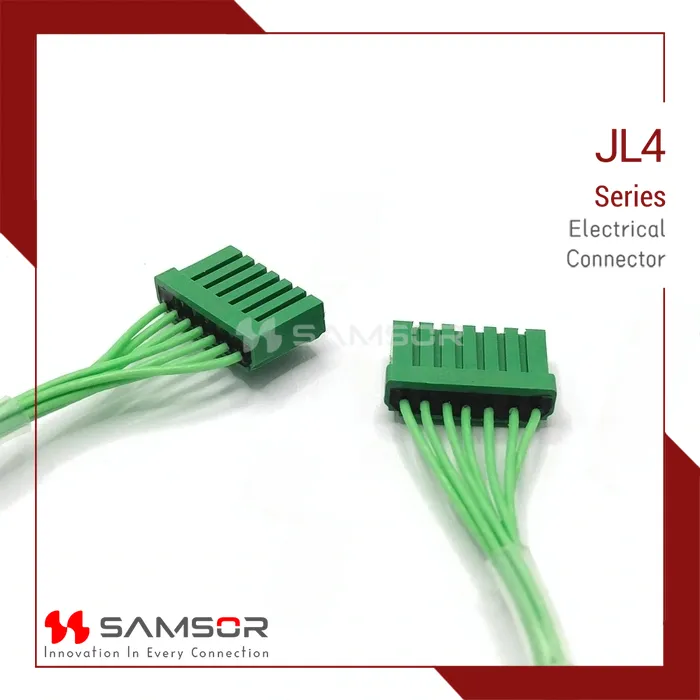

JL4-7TKY-S| ∎ JL4 Series Introduction |
| ● The socket adopts a φ0.6 wire spring contact structure. The contacts are gold-plated for reliable performance |
| ● Number of contacts: 2, 3, 4, 5, 6, 7, 8, 9, 10 pins |
| ● Single row, 2.00mm pitch, board-to-wire connection |
| ● Conductor Specification is 0.15mm². Default supply is green high-temperature resistant silver-plated wrapped wire |
| ● Receptacle styles include vertical and right-angle PCB mount configurations. Plug options include solder cup, pre-wired, and double-ended wire types |
| ● The product complies with GJB1438A-2006 requirements and is manufactured in accordance with enterprise standard Q/SS105-2018 |
| ∎ Performance Specifications | |
| Operating Temperature : -55℃～+125℃ | Vibration ：10Hz～2000Hz, acceleration 147m/s, Interruption duration≤1µs |
| Rated Current : 1A | Shock : 980m/s² Interruption duration≤1µs |
| Insulation Resistance : ≥5000MΩ | Contact Resistance : ≤12.5mΩ |
| Durability : 500 times | Dielectric Withstand Voltage : 1000V(AC) |
| ∎ How to Order |
|
| ∎ Dimensions |
|
