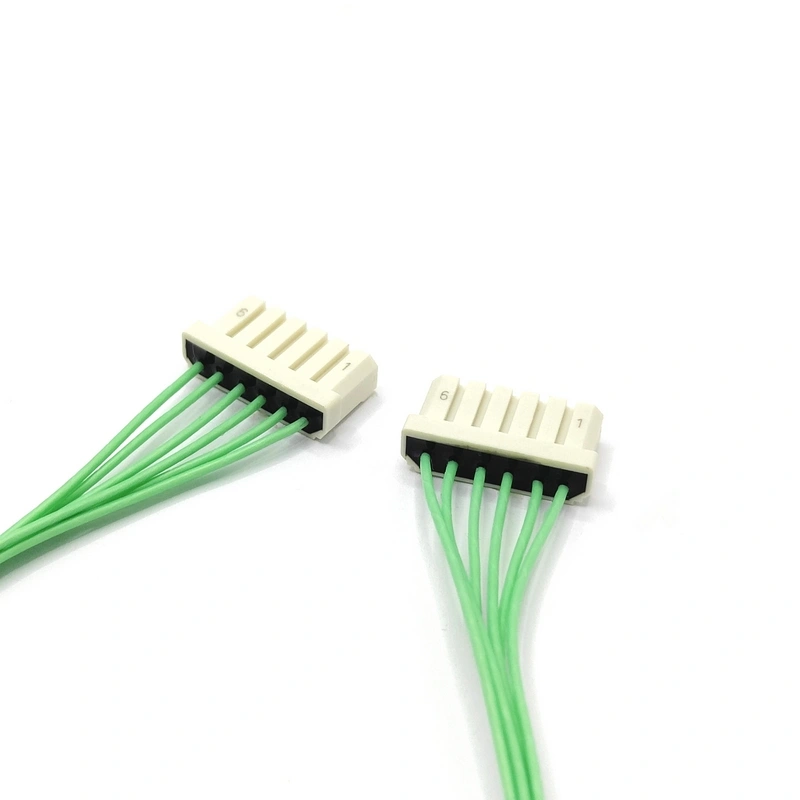

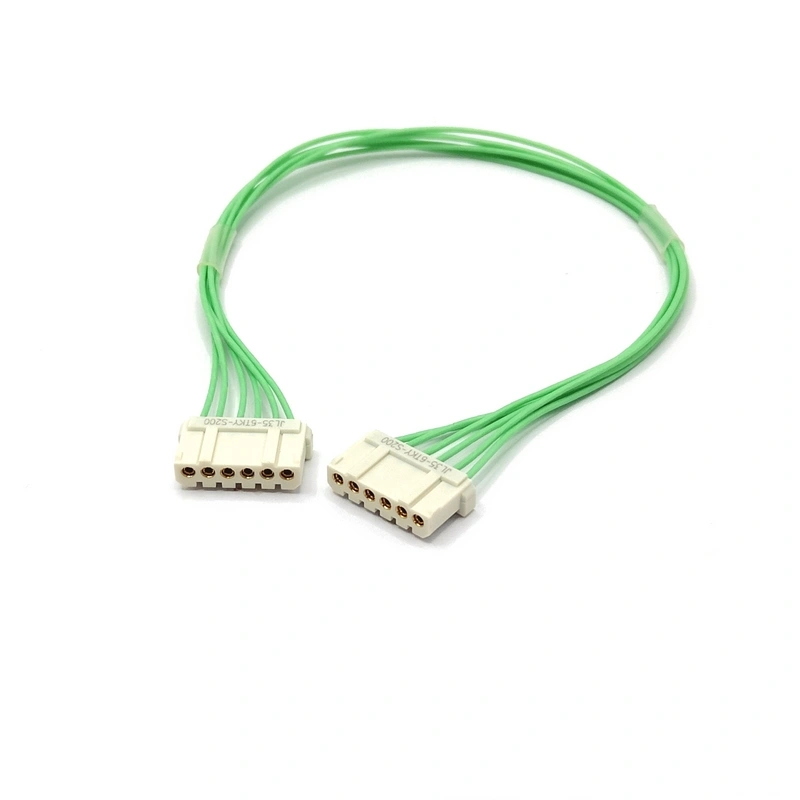

JL35-6TKY-S
- Shape Factor：Rectangular PCB
- Category：Plug
- Termination Type：Pre-Wired
- Contact Layout：6
- Current Rating：3A
- Insulation Resistance：≥5000MΩ
- DWV：1000V
- Operating Temperature：-55℃~125℃
- Standard：GJB1438A
- Connector Orientation：Straight Type
- Contact Type：Socket / Female
- Contact Pitch：2.54mm
- Shell Material：Plastic
- Shell Finish：N/A
- Salt Spray：48h
- Vibration：10~2000 Hz 147 m/s²
- Shock：980m/s²
- Durability：500 cycles
- Overview
- Related Products
- Downloads
- FAQ
- Videos
| ∎ JL35 Series Introduction |
| ● The socket adopts a φ0.76 wire spring contact structure. The contacts are gold-plated for reliable performance |
| ● Number of contacts: 2, 3, 4.....12 pins |
| ● Single row, 2.54mm pitch, board-to-wire connection |
| ● Conductor Specification is 0.2mm², default supply is green high-temperature resistant silver-plated wrapped wire |
| ● Receptacle styles include vertical and right-angle PCB mount configurations. Plug options include solder cup, pre-wired, and double-ended wire types |
| ● The product complies with GJB1438A-2006 and is manufactured in accordance with Enterprise Standard Q/SS109-2018 |
| ∎ Performance Specifications | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz, acceleration 147m/s, interruption duration≤1µs |
| Rated Current: 3A | Shock: 980m/s² Interruption duration≤1µs |
| Insulation Resistance: ≥5000MΩ | Contact Resistance: ≤10mΩ |
| Durability: 500 times | Dielectric Withstand Voltage: 1000V(AC) |
