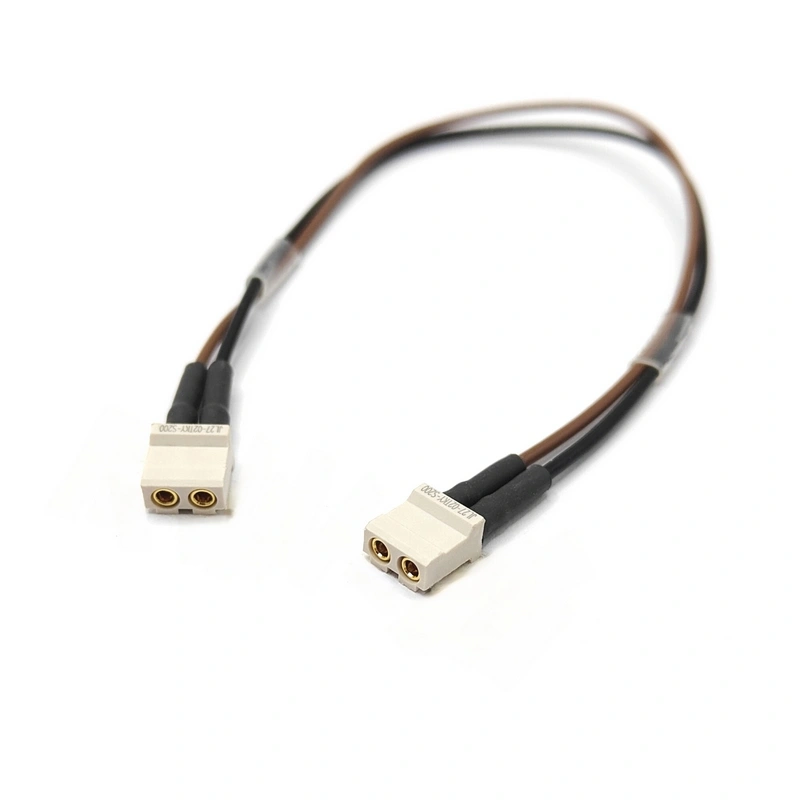

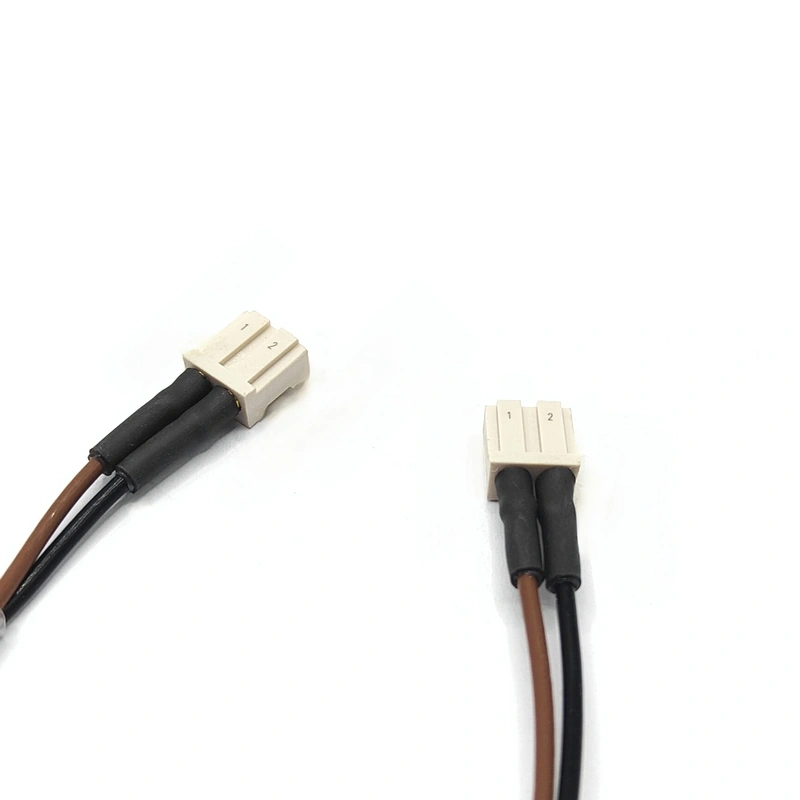

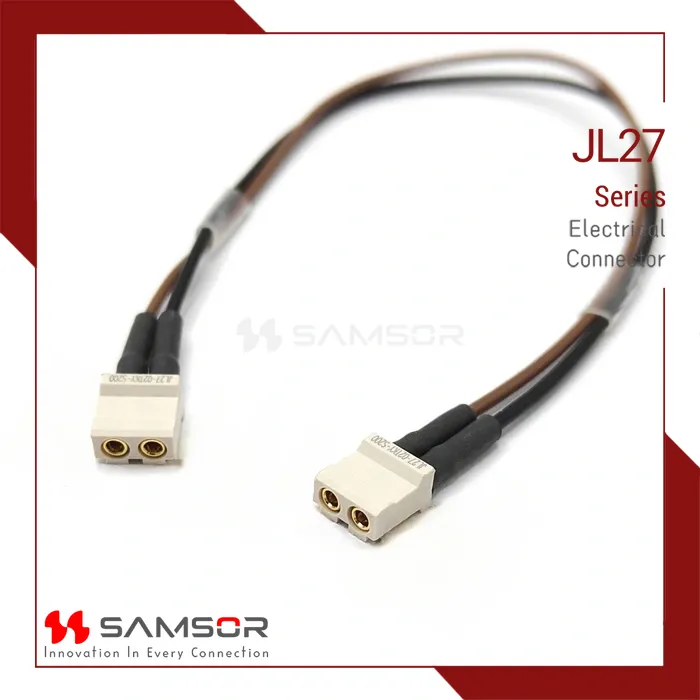

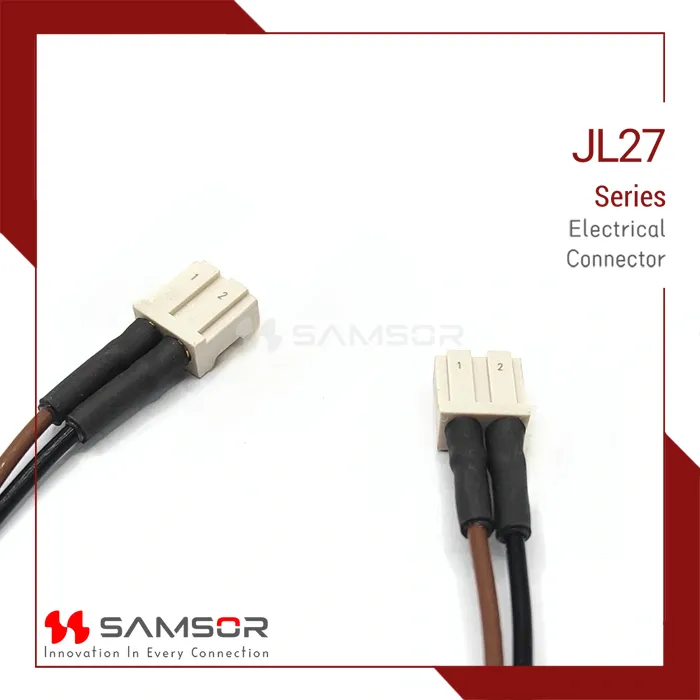

JL27-02TKY-S| ∎ JL27 Series Introduction |
| ● Adopts a multi-lamella spring socket structure with φ1.59mm specification. The contacts are gold-plated for reliable performance |
| ● Number of contacts: 2, 3, 4.....20 pins |
| ● Single row, 3.96mm pitch, board-to-wire connection |
| ● Conductor Specification is 1mm², default supply is high-temperature resistant silver-plated extruded wire |
| ● Receptacle styles include vertical and right-angle PCB mount configurations. Plug options include solder cup, pre-wired, and double-ended wire types |
| ● The product complies with GJB1438A-2006 and is manufactured in accordance with the enterprise standard Q/SS102-2016 |
| ∎ Performance Specifications | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz, acceleration 147m/s, interruption duration≤1µs |
| Rated Current: 3A | Shock: 980m/s², Interruption duration≤1µs |
| Insulation Resistance: ≥5000MΩ | Contact Resistance: ≤3.8mΩ |
| Durability: 500 times | Dielectric Withstand Voltage: 1000V(AC) |
| ∎ How to Order |
|
| ∎ Dimensions |
|
