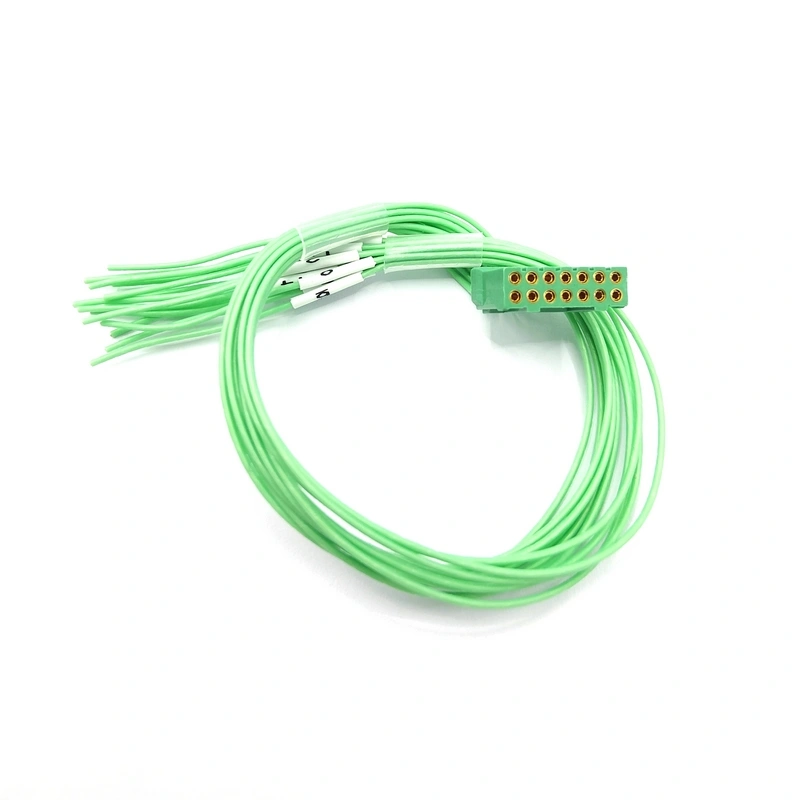

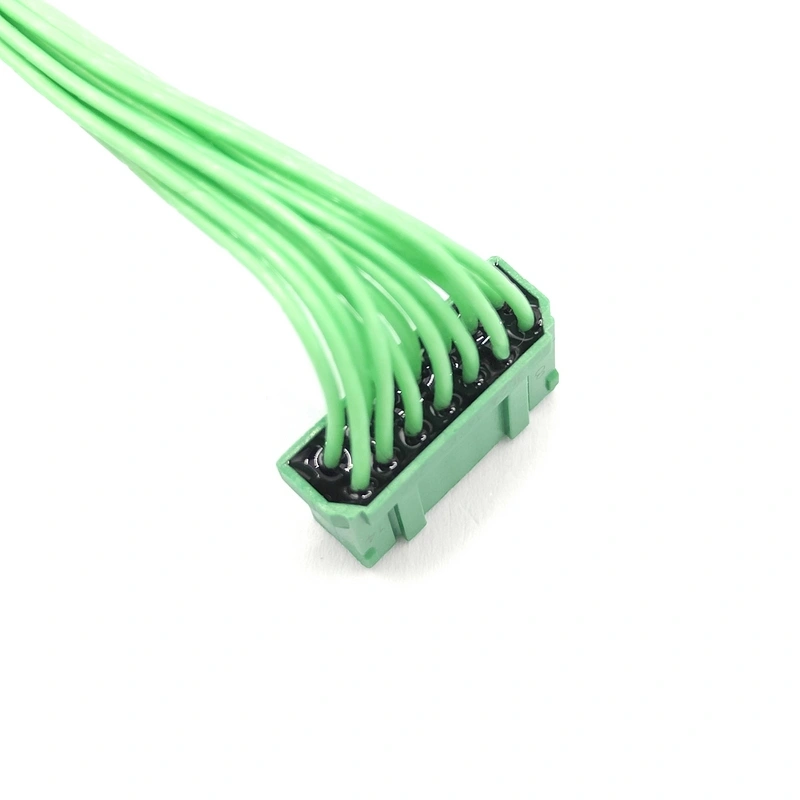

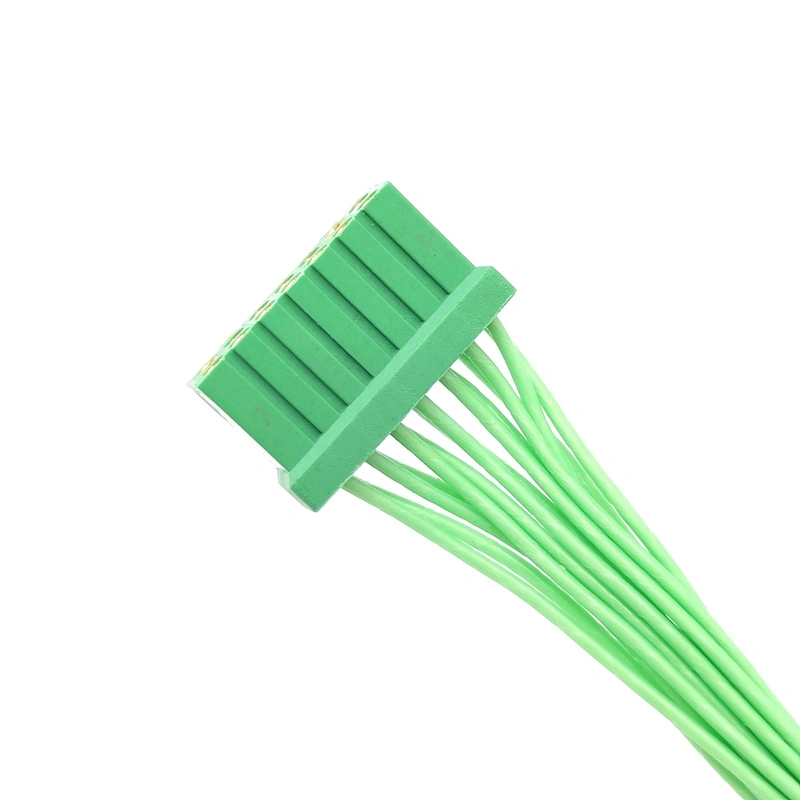

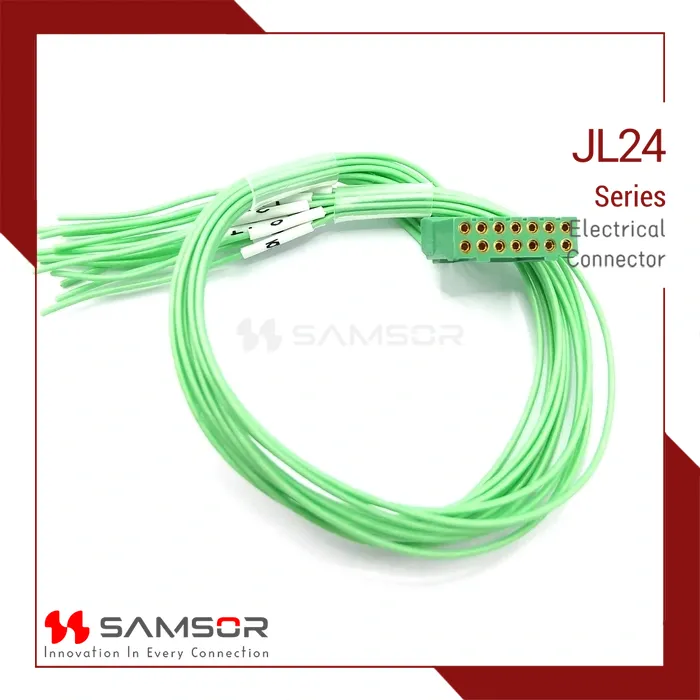

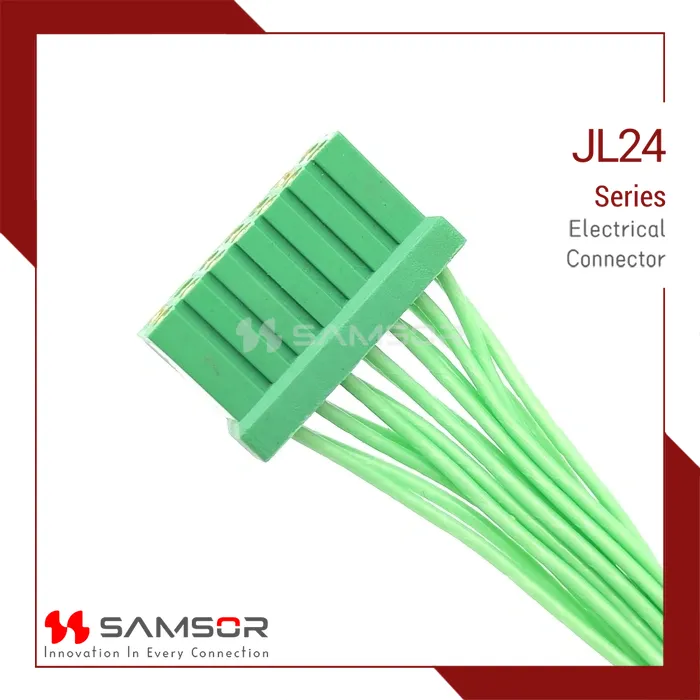

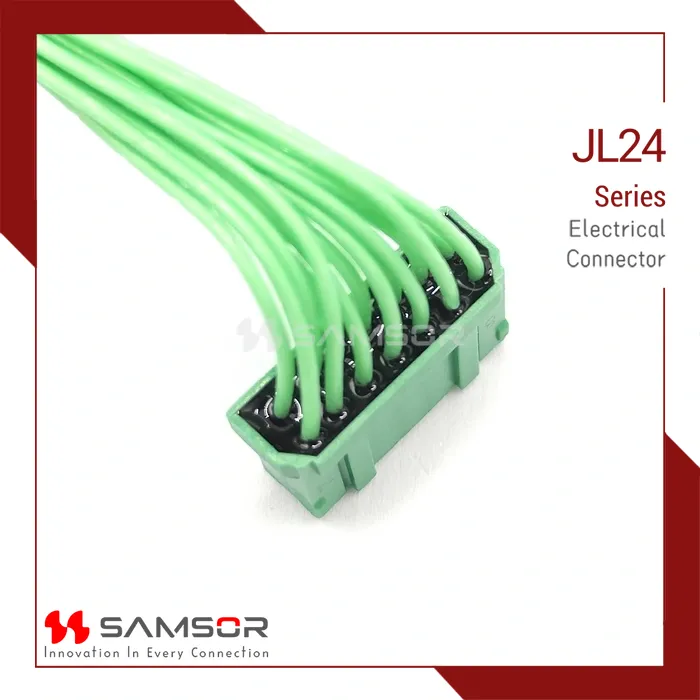

JL24-14TKY| ∎ JL24 Series Introduction |
| ● The socket adopts a φ0.6 wire spring contact structure. The contacts are gold-plated for reliable performance |
| ● Number of contacts: 6, 8, 10.....30 pins |
| ● Double row, 2.0mm pitch, board-to-wire connection |
| ● Conductor Specification is 0.15mm², default supply is green high-temperature resistant silver-plated wrapped wire |
| ● Receptacle styles include vertical and right-angle PCB mount configurations. Plug options include solder cup, pre-wired, and double-ended wire types |
| ● The product complies with GJB1438A-2006 and is manufactured in accordance with Enterprise Standard Q/SS101-2006. |
| ∎ Performance Specifications | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz, acceleration 147m/s, interruption duration≤1µs |
| Rated Current: 1A | Shock: 980m/s² Interruption duration≤1µs |
| Insulation Resistance: ≥5000MΩ | Contact Resistance: ≤12.5mΩ |
| Durability: 500 times | Dielectric Withstand Voltage: 1000V(AC) |
| ∎ How to Order |
|
| ∎ Dimensions |
|
