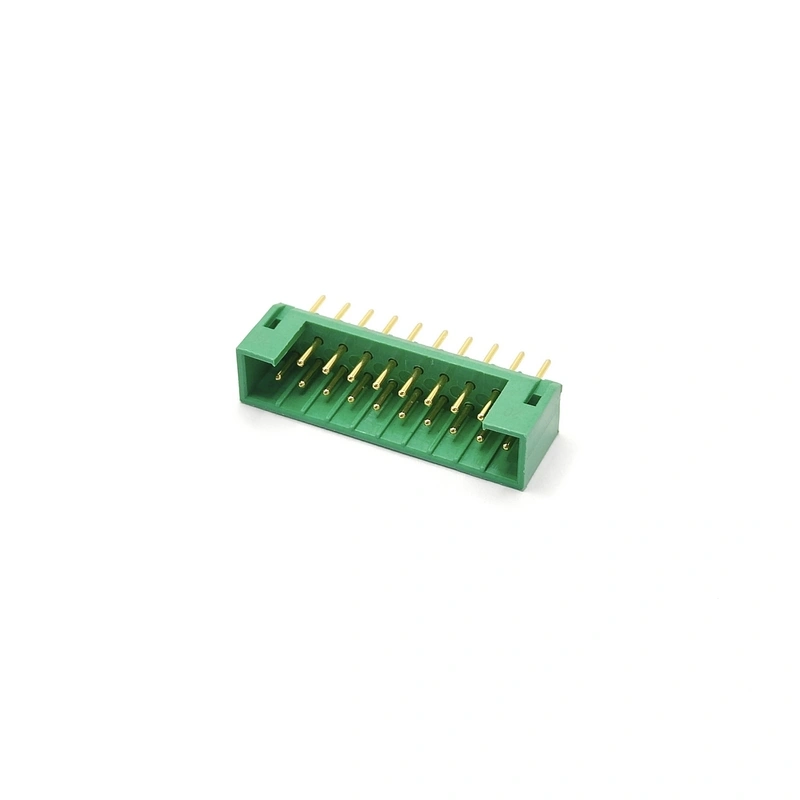

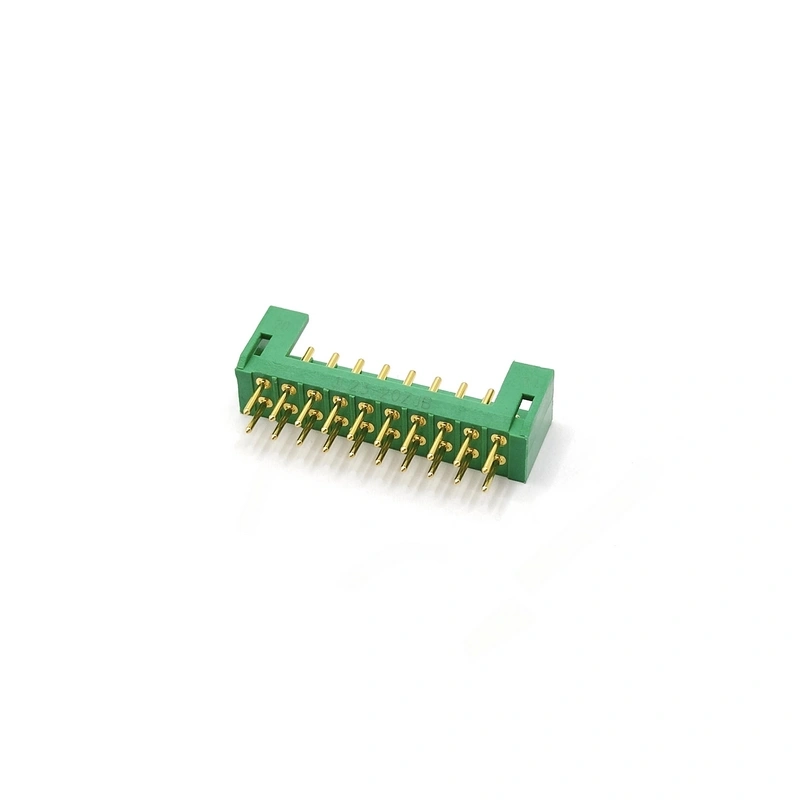

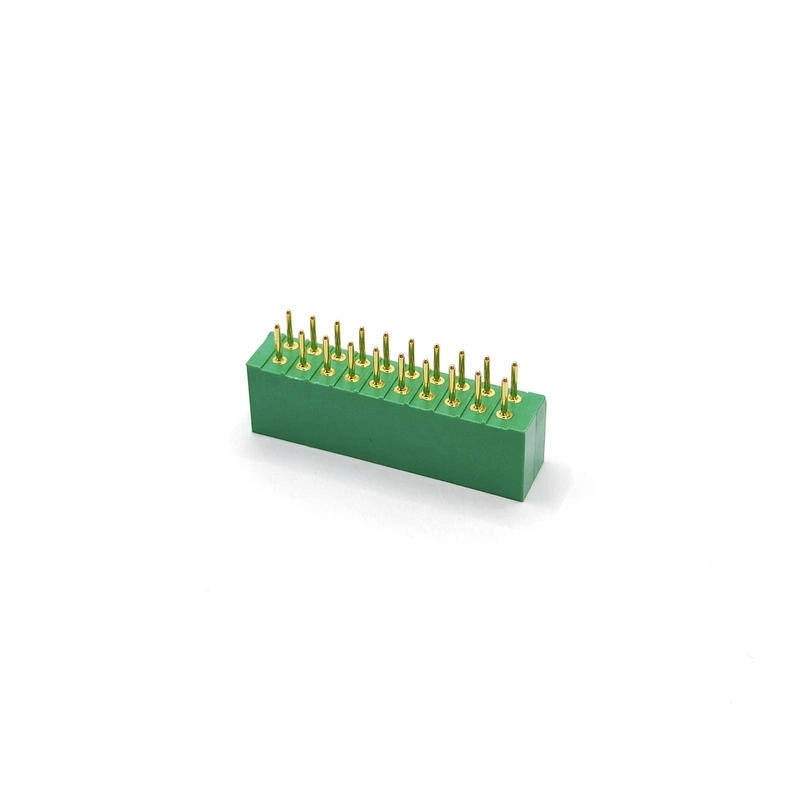

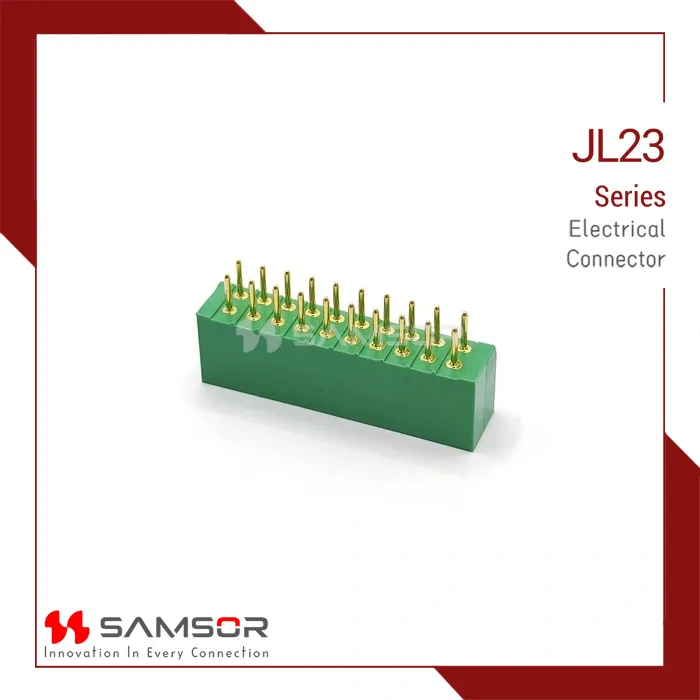

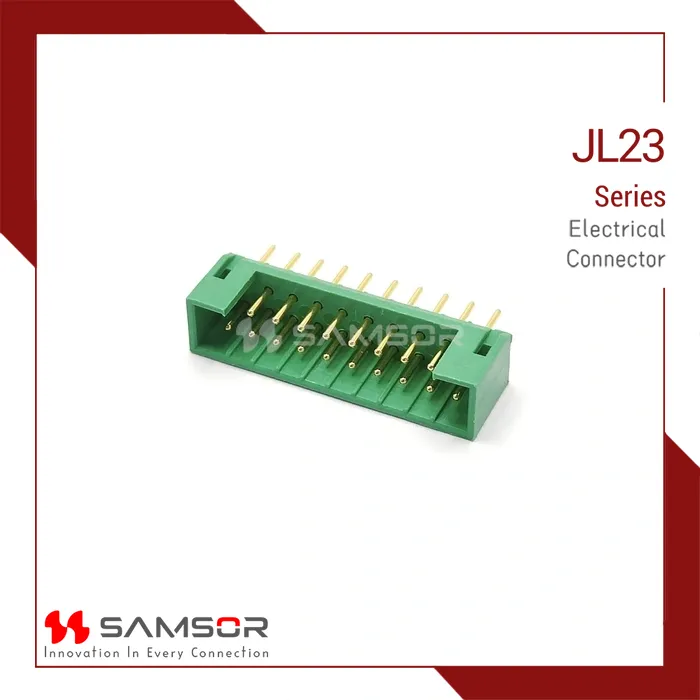

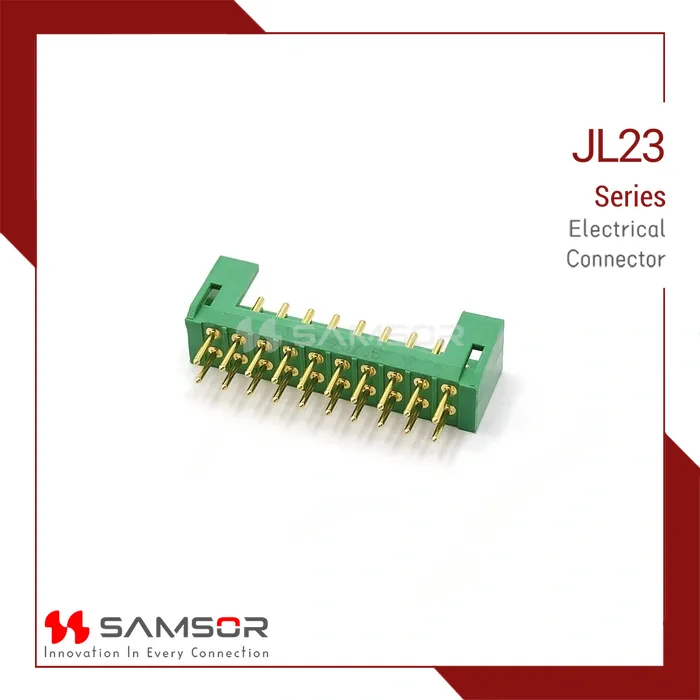

JL23-20ZJB| ∎ JL23 Series Introduction |
| ● The socket adopts a φ0.76 wire spring contact structure. The contacts are gold-plated for reliable performance |
| ● Number of contacts: 4, 6, 8.....40 pins |
| ● Double row, 2.54mm pitch, board-to-wire connection |
| ● Conductor Specification is 0.2mm², default supply is green high-temperature resistant silver-plated wrapped wire |
| ● Receptacle styles include vertical and right-angle PCB mount configurations. Plug options include solder cup, pre-wired, and double-ended wire types |
| ● The product complies with GJB1438A-2006 and is manufactured in accordance with Enterprise Standard Q/SS103-2018 |
| ∎ Performance Specifications | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz, acceleration 147m/s, interruption duration≤1µs |
| Rated Current: 3A | Shock: 980m/s² Interruption duration≤1µs |
| Insulation Resistance: ≥5000MΩ | Contact Resistance: ≤10mΩ |
| Durability: 500 times | Dielectric Withstand Voltage: 1000V(AC) |
| ∎ How to Order |
|
| ∎ Dimensions |
|
