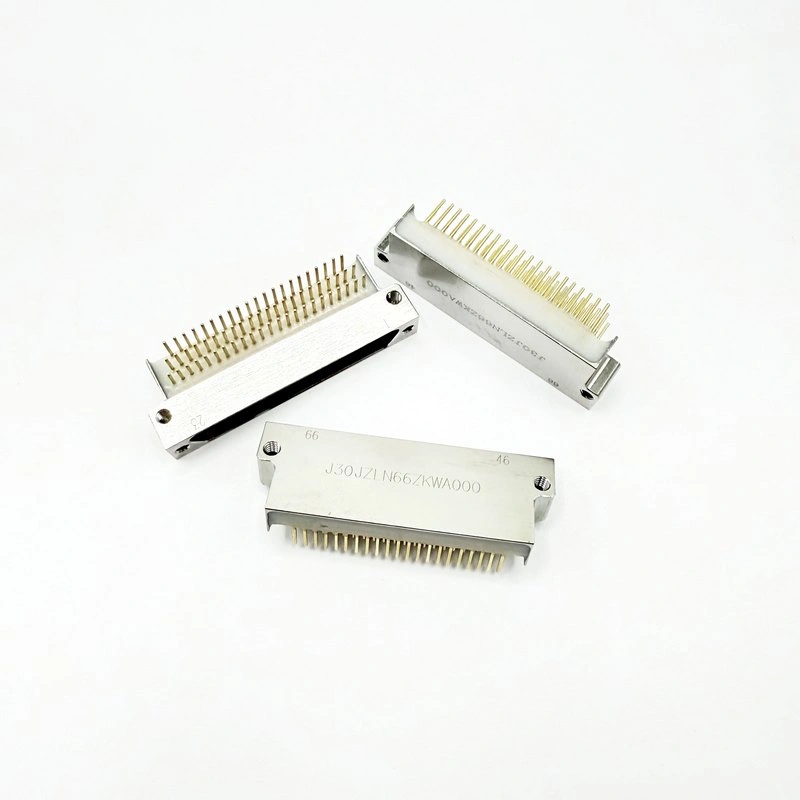

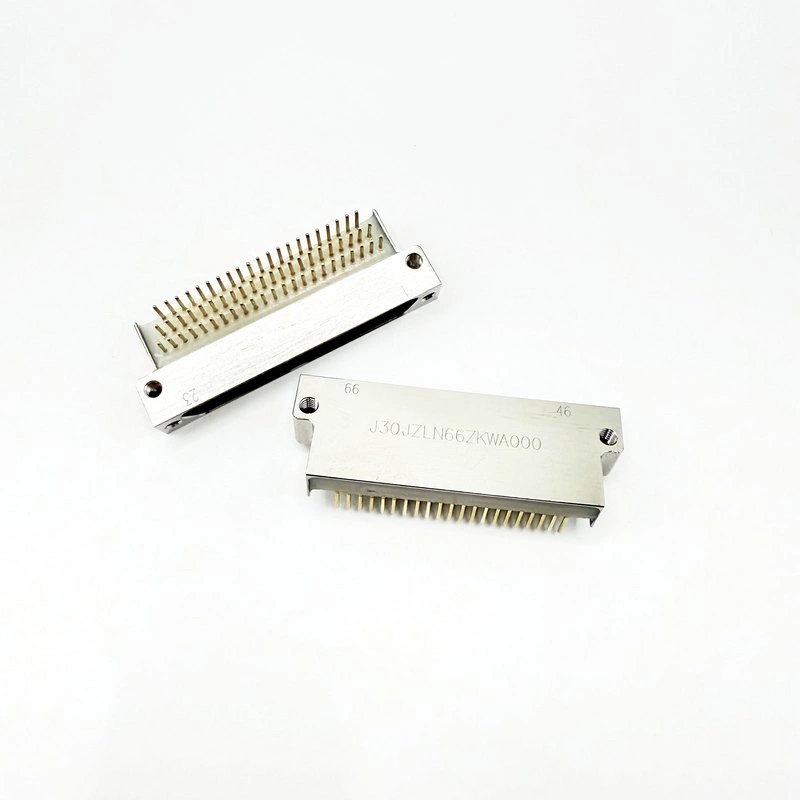

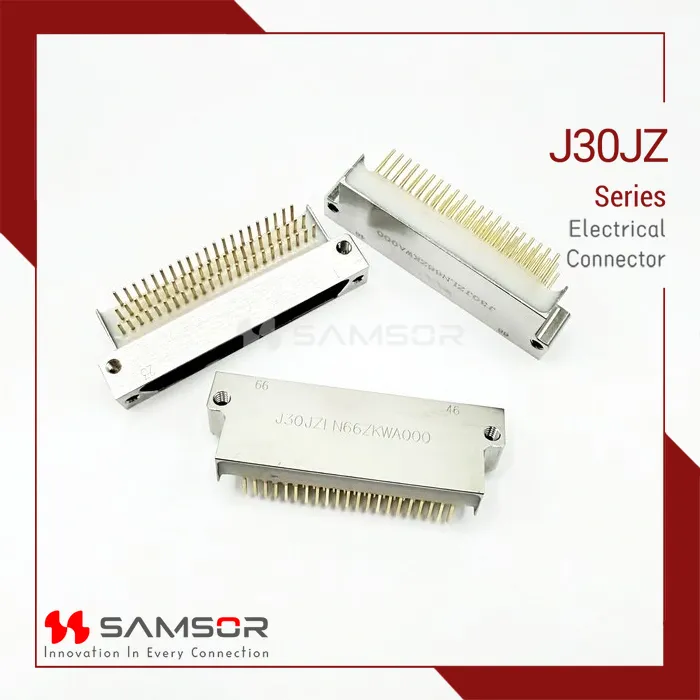

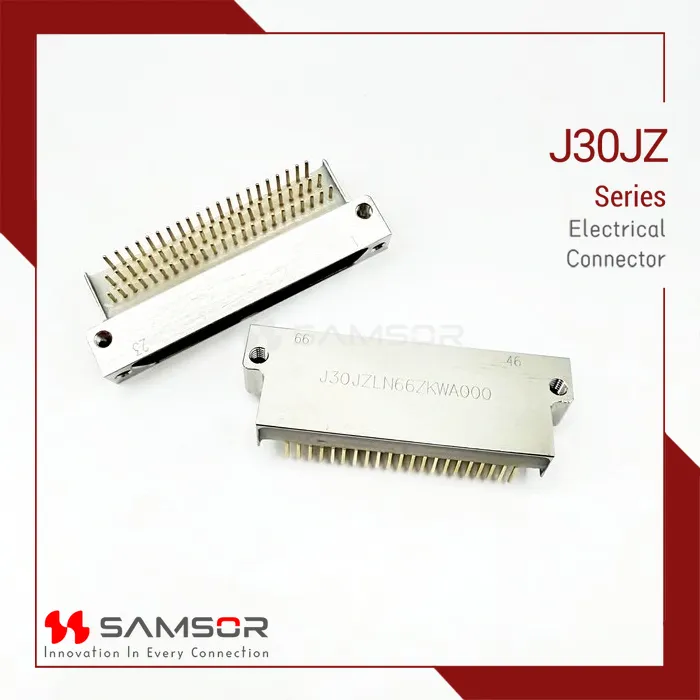

J30JZLN66ZKWA000| ∎ J30JZ Series Introduction |
| ● Compared with the J30J series connector, the volume is reduced by 60% |
| ● Number of Contacts: Available in 10 configurations with 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 pins |
| ● Adopts stranded-wire elastic contact pins (TwistPin) with a 1.27mm pitch, high contact density and more reliable performance |
| ● Suitable for conductor cross-sectional areas from 0.07 mm² to 0.15 mm². Thinner conductor require modification. Default Supply: 0.12 mm² white high-temperature resistant silver-plated wrapped wire |
| ● The hardware for this series is supplied and assembled to the product per ordering requirements. If hardware is not required, it must be specified in the contract |
| ● The product complies with GJB2446A-2011 requirements. Implemented Enterprise Standard: Q/SS104-2017 |
| ∎ Performance Specifications | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz 196m/s² |
| Random vibration: Power density 0.4G²/Hz. The total acceleration-root-mean square is 23.1G | Shock: 735m/s² 11ms |
| Rated Current: 3A max | Contact Resistance: ≤10mΩ |
| Insulation Resistance: ≥5000MΩ | Dielectric Withstand Voltage: 600V |
| Durability: 2000 times | |
| ∎ Contact Arrangement (Face View Pin Connector) |
|

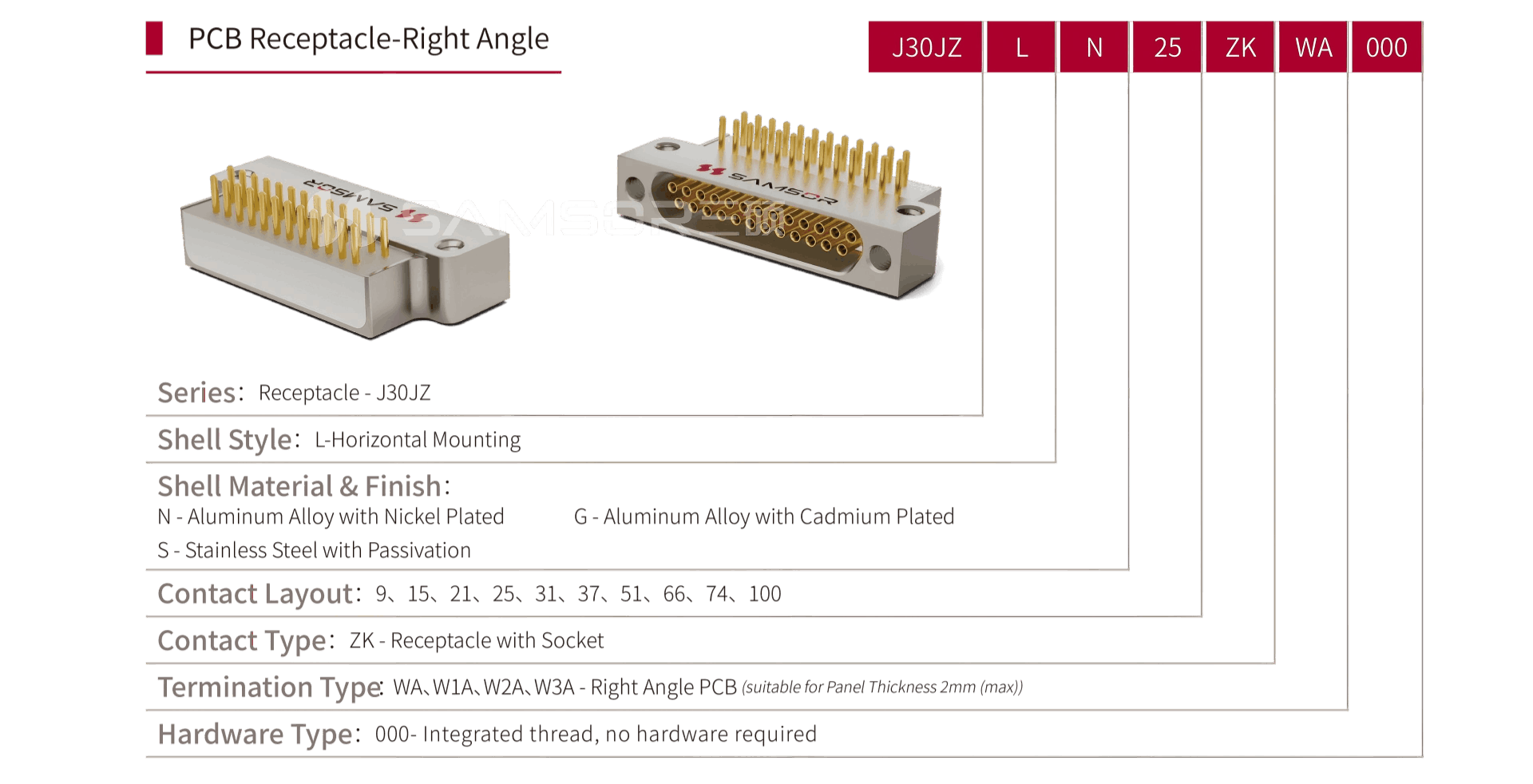

| ∎ How to Order |
|

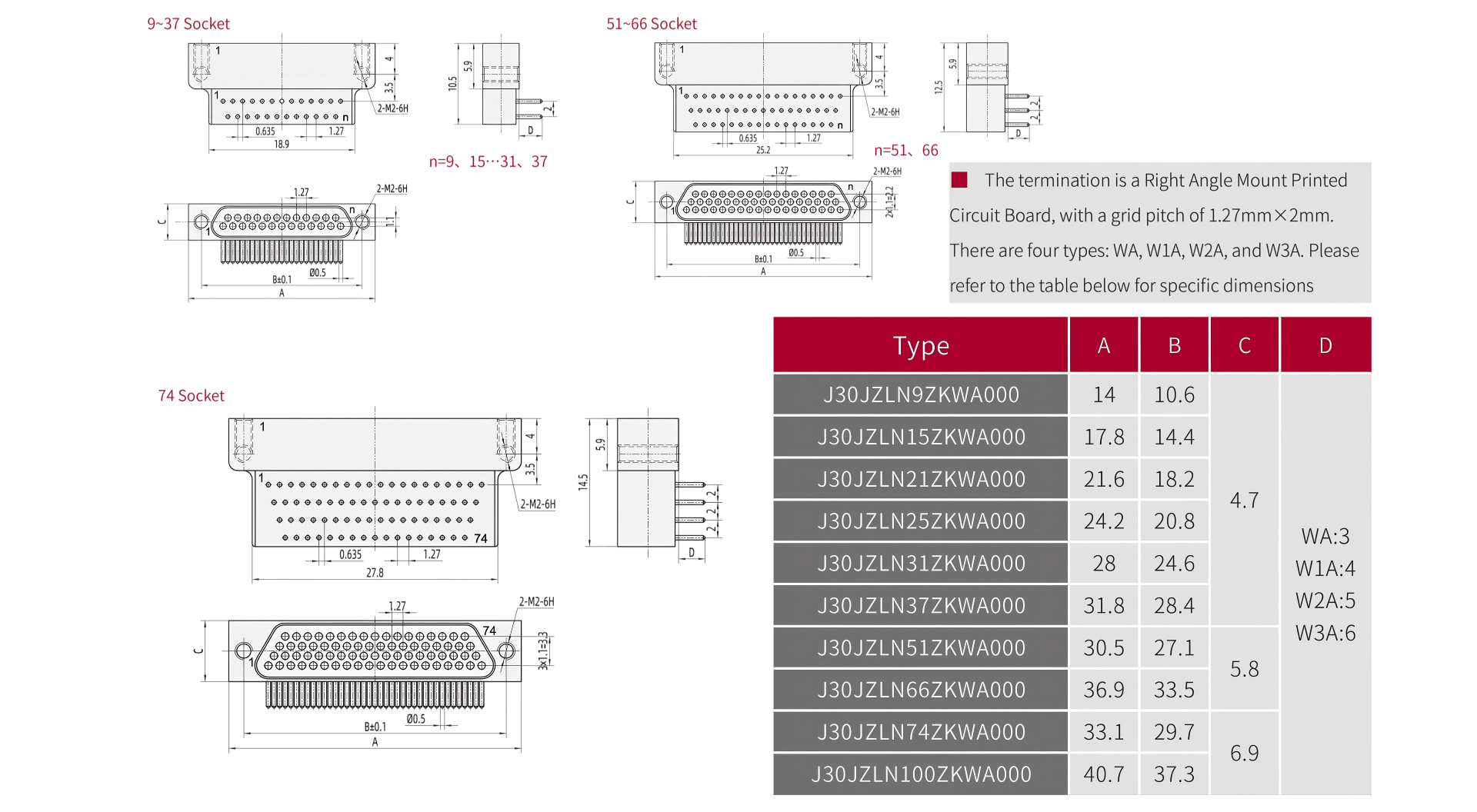

| ∎ Dimensions |
|

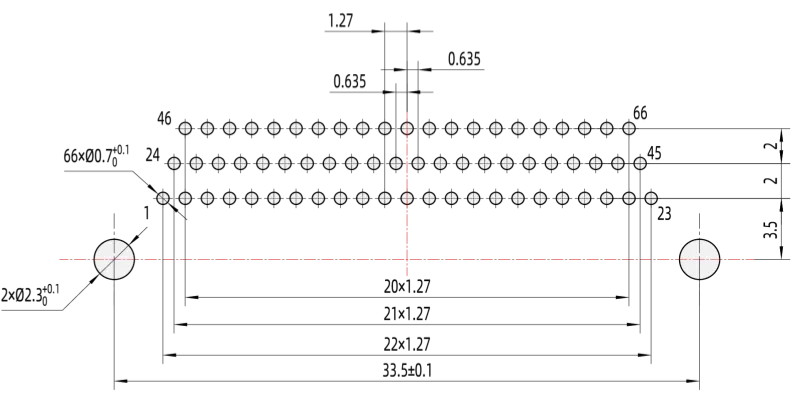

| ∎ PCB Layouts |
|
