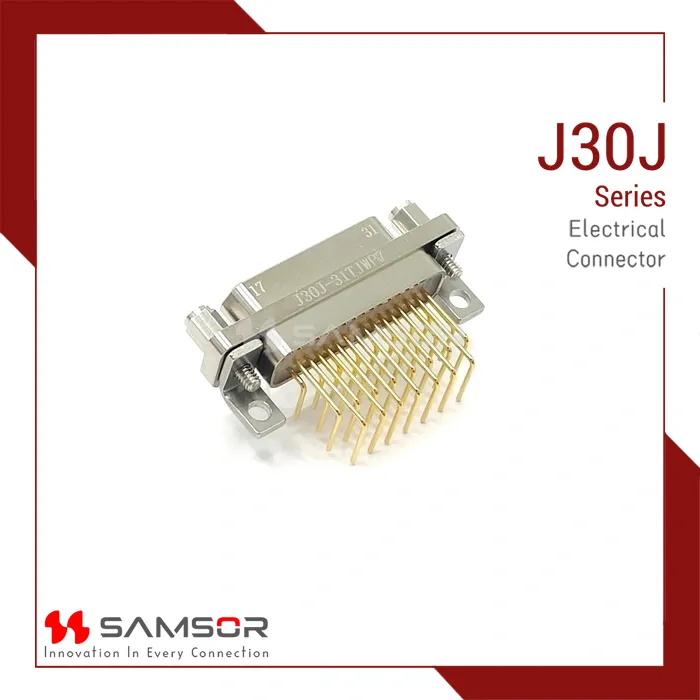

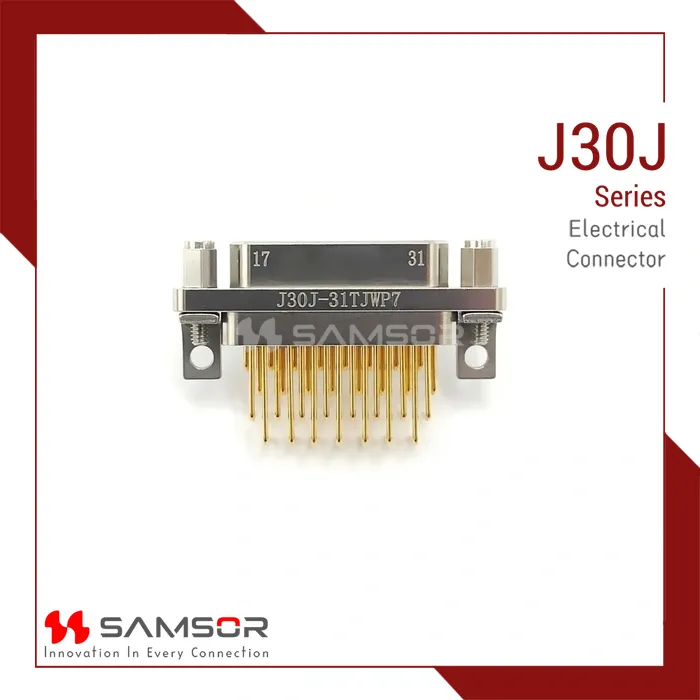

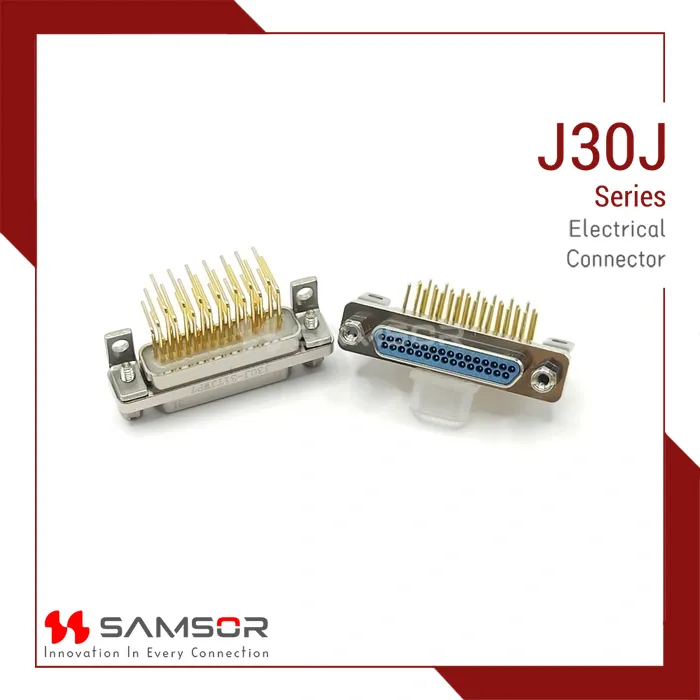

J30J-31TJWP7| ∎ J30J Series Introduction |
| ● Compatible with the U.S. MDM series product |
| ● Number of Contacts: Available in 11 specifications with 9, 15, 21, 25, 31, 37, 51, 66, 74, 100, and 144 contacts respectively |
| ● Adopts stranded wire elastic pins (TwistPin) contacts, 1.27 mm pitch, high contact density and more reliable performance |
| ● Suitable for wire core cross-sectional areas ranging from 0.07mm² to 0.2mm². Thinner wires require modification. Please specify this requirement when placing an order.The default supplied wire is 0.12mm² white high-temperature silver-plated lapped wire |
| ● The hardware for this series is supplied and assembled to the product per ordering requirements. If hardware is not required, it must be specified in the contract |
| ● Meets GJB2446A requirements (equivalent to MIL-C-83513). Implemented Enterprise Standard: Q/SS104-2017 |
| ∎ Performance Specifications | |
| Operating Temperatures：-55℃～ +125℃ | Vibration：10Hz～2000Hz 196m/s² |
| Shock：735m/s² 11ms | Rated Current：3A |
| Insulation Resistance：≥ 5000MΩ | Contact Resistance：≤10mΩ |
| Durability：500 times | Dielectric Withstand Voltage：800V |
| ∎ Contact Arrangement (Face View Pin Connector) |
|

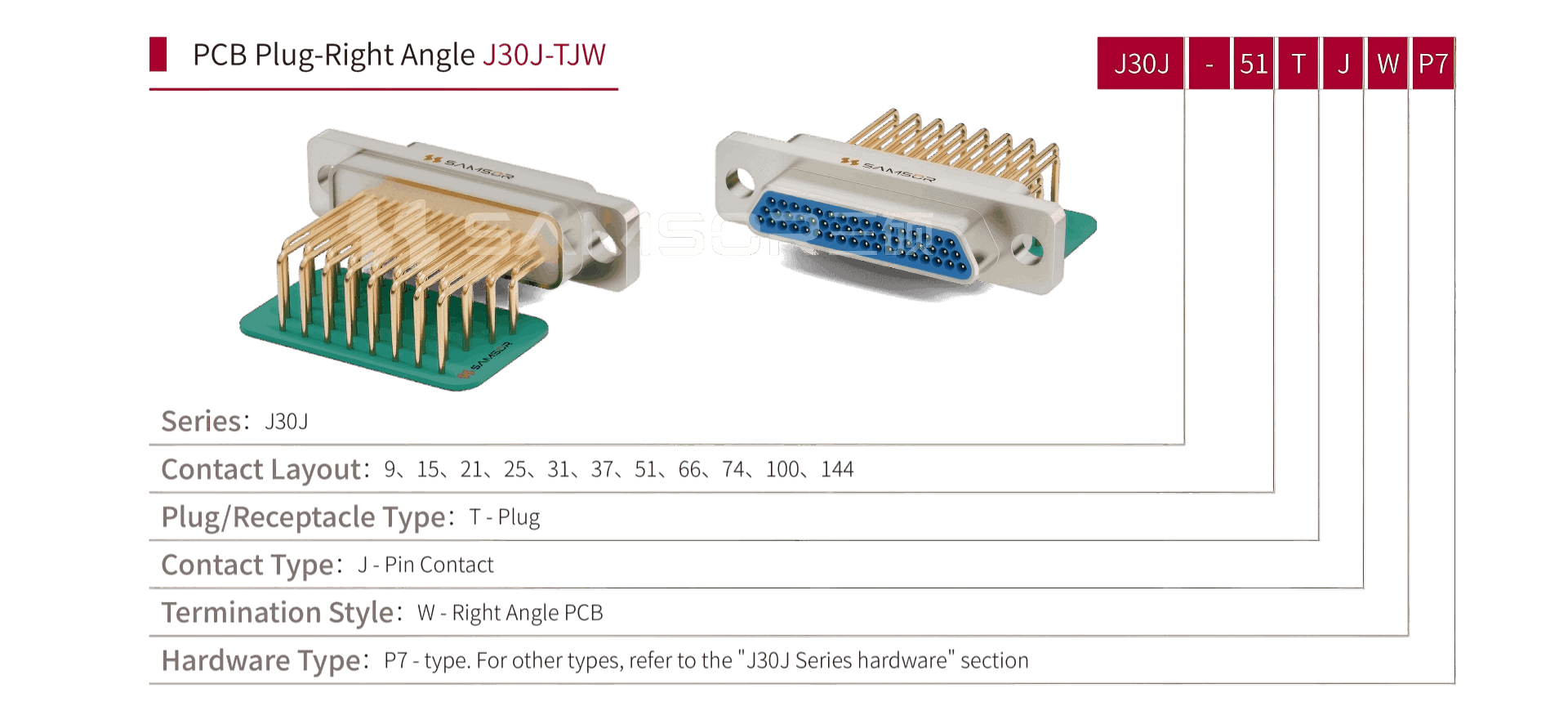

| ∎ How to Order |
|

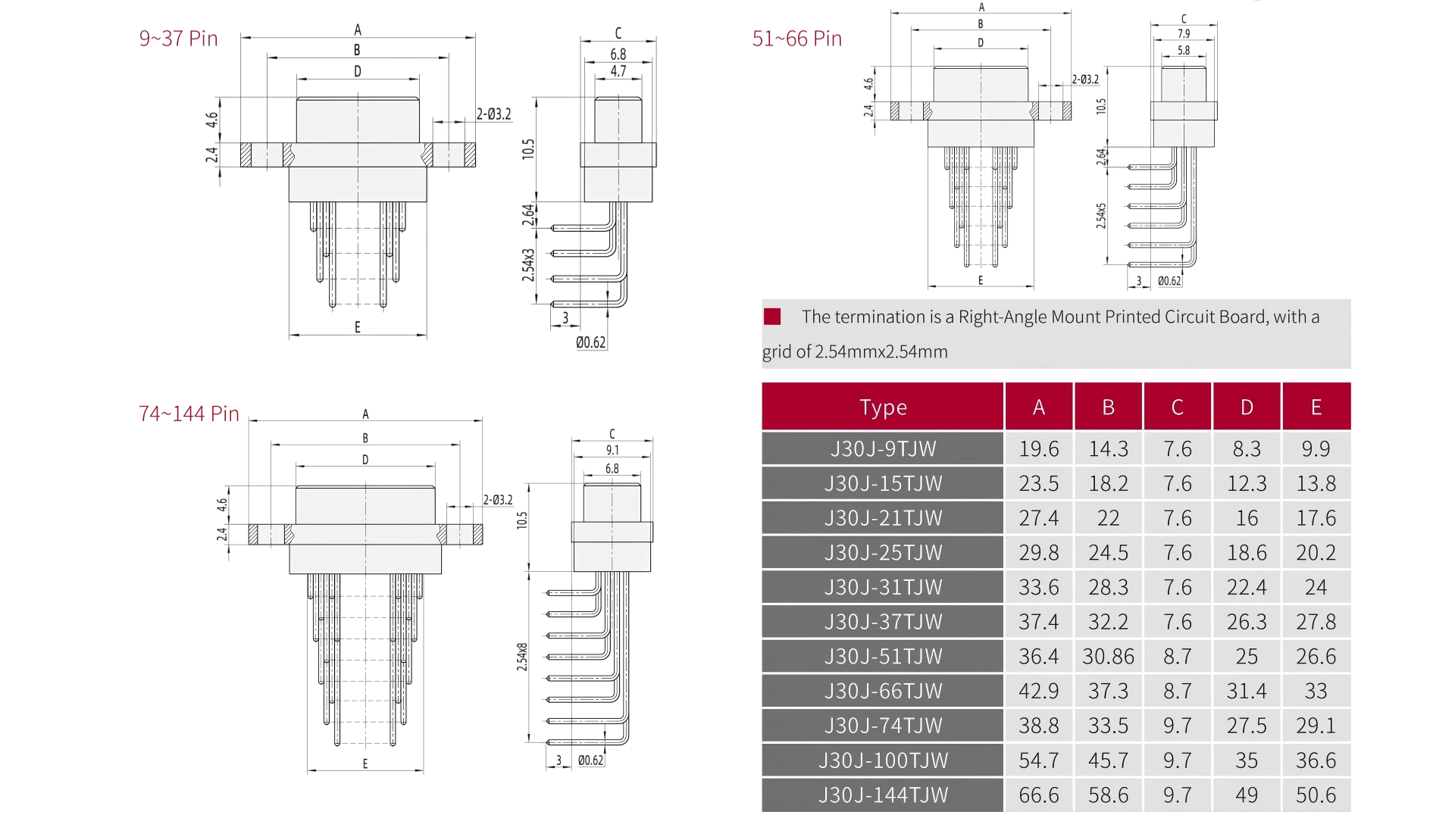

| ∎ Dimensions |
|
| ∎ PCB Layouts |
|

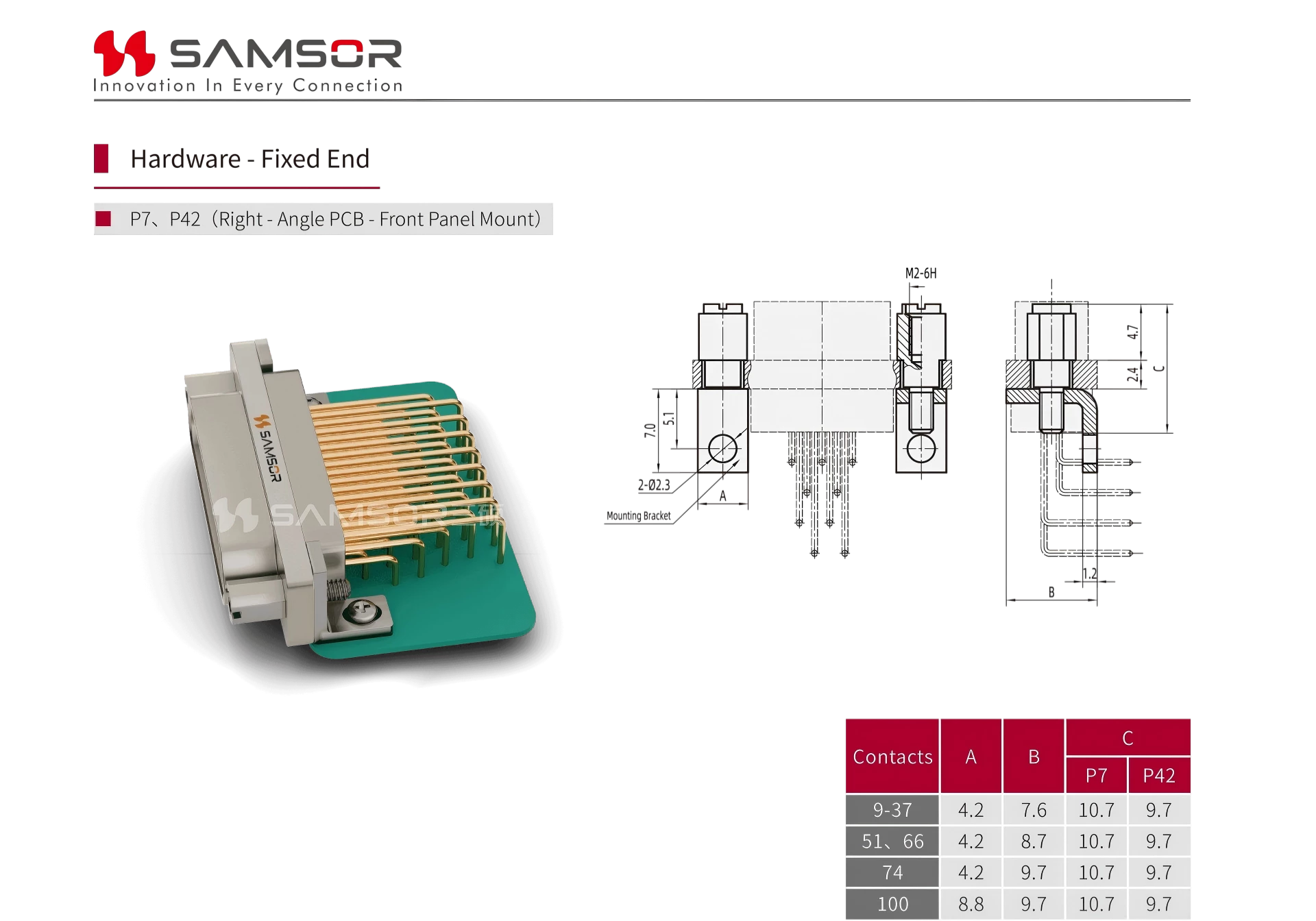

| ∎ Hardware |
|
