Home > Products > Micro Rectangular > J30J-Hybrid Series > J30J-Hybrid-PCB > J30J-Hybrid-PCB-180°-Plug

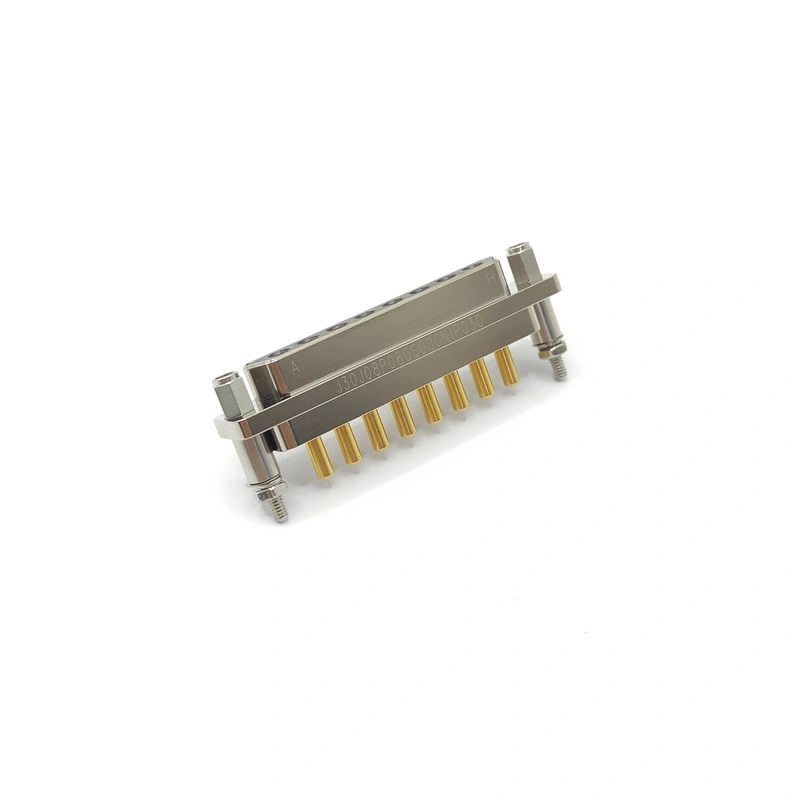

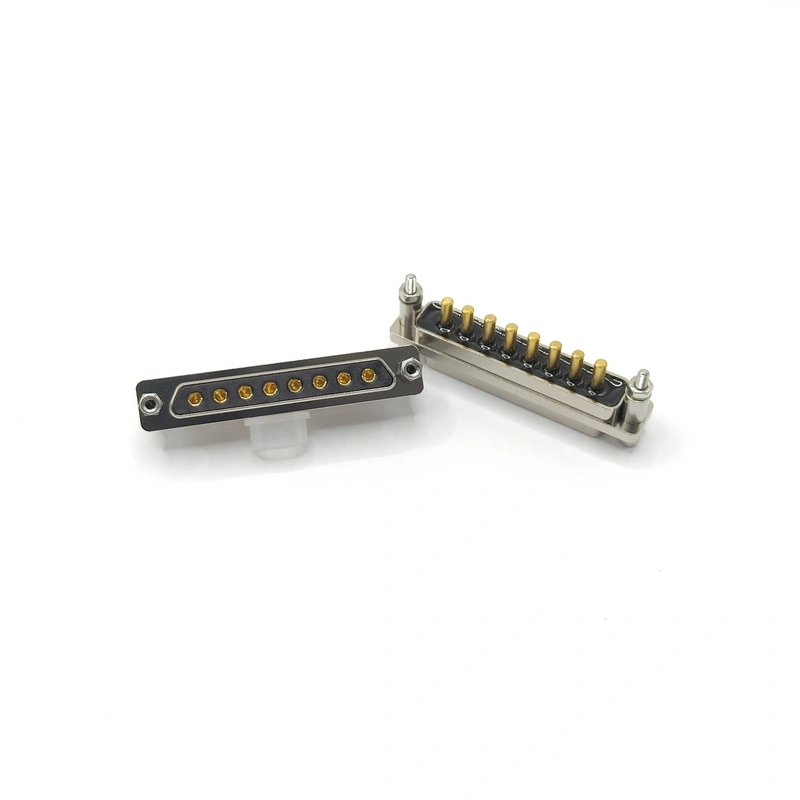

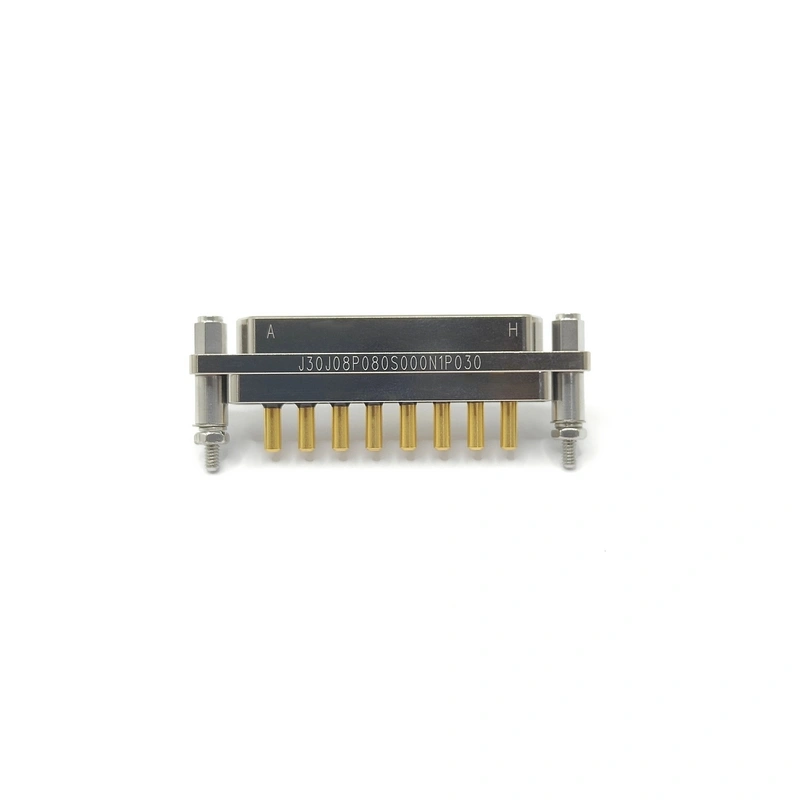

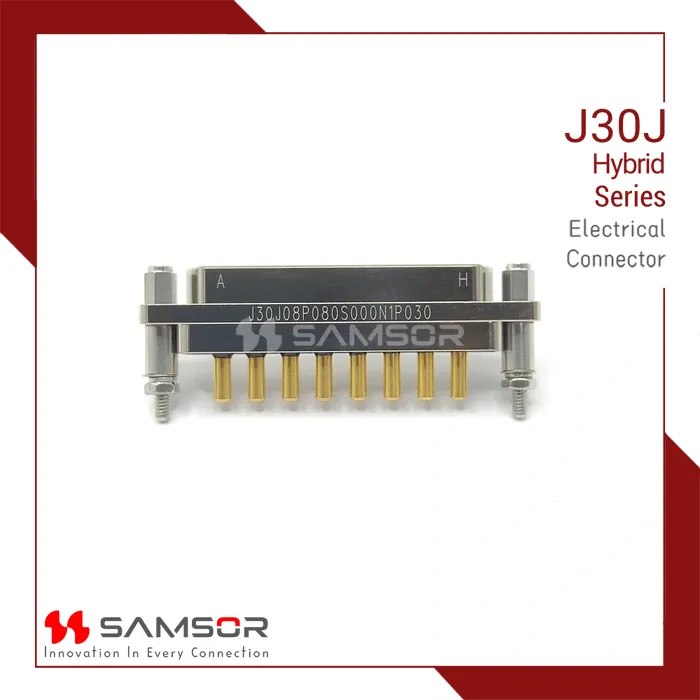

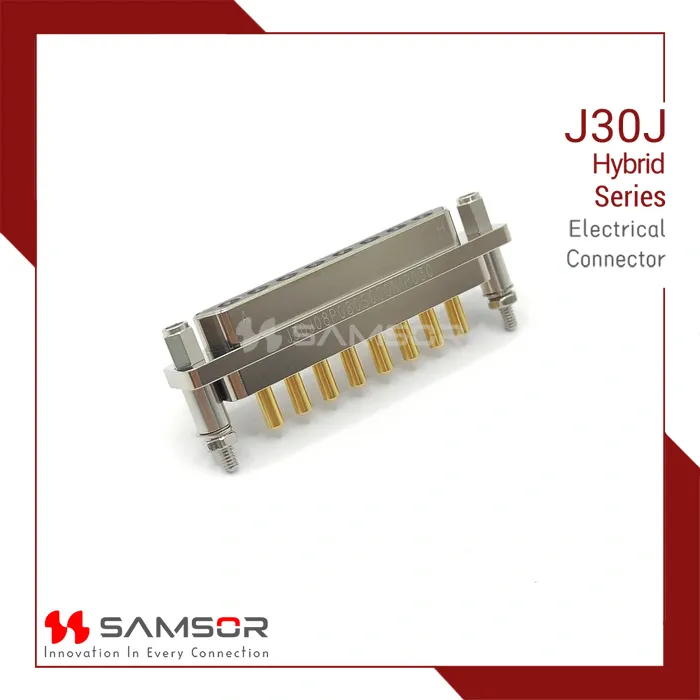

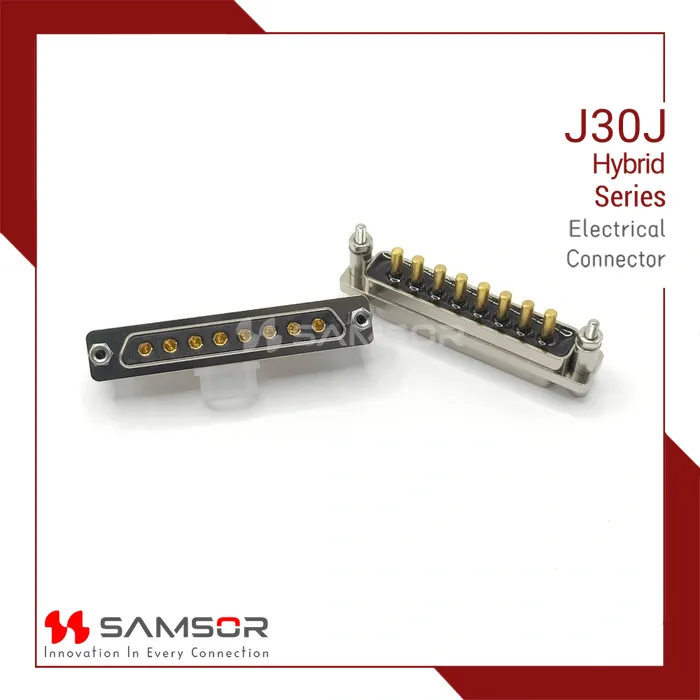

J30J08P080S000N1P030| ∎ J30J Hybrid Series Introduction |
| ● Metal material housing |
| ● Features a mixed configuration of power and signal contacts, offering multiple layout options |
| ● Small (signal) contact rating: 3A Large (power) contact rating: 20A |
| ● Suitable conductor cross-sectional area ranging from 0.07mm² to 0.15mm² for small (signal) contacts, 2mm²and 3mm² for small (signal) contacts |
| ● Implemented per enterprise standard: Q/SS 114-2020 |
| ∎ Performance Specifications | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz 196m/s² |
| Random vibration: Power density 0.4G²/Hz. The total acceleration-root-mean square is 23.1G | Shock: 735m/s² 11ms |
| Rated Current: 3A (Signal contacts), 20A (Power contacts) | Contact Resistance: ≤10mΩ |
| Insulation Resistance: ≥5000MΩ | Dielectric Withstand Voltage: 800V |
| Durability: 500 times | |

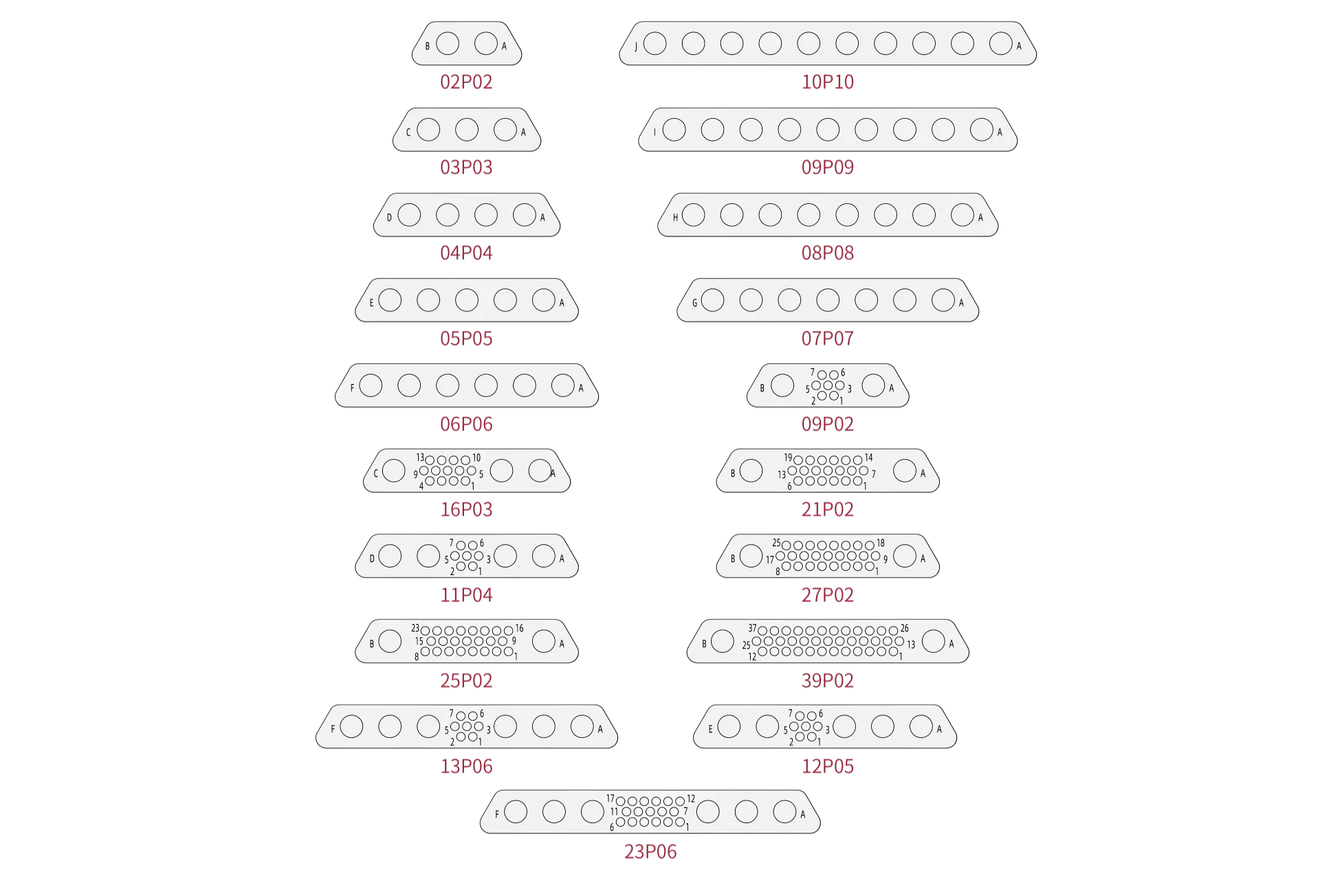

| ∎ Contact Arrangement (Face View Pin Connector) |
|

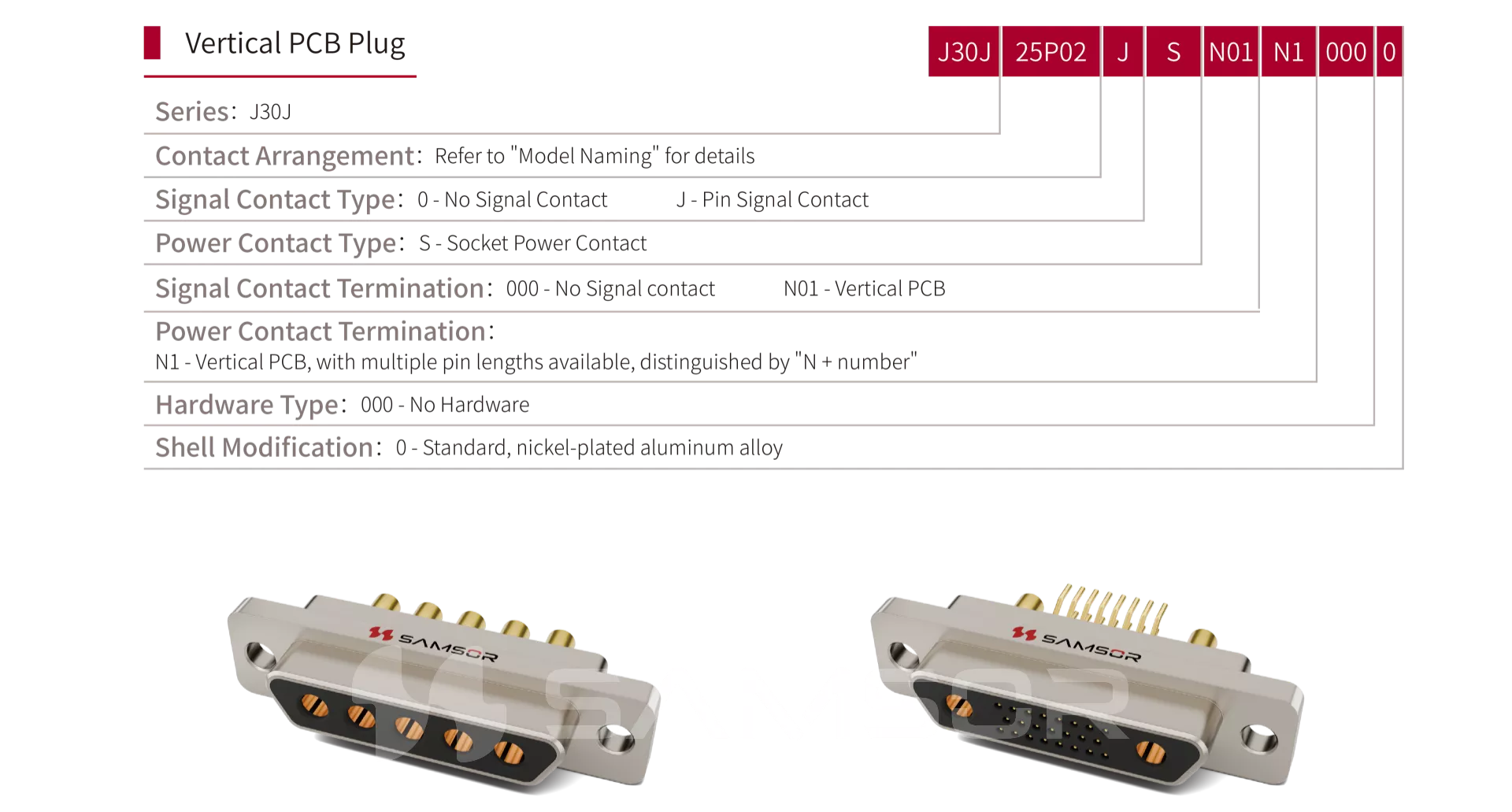

| ∎ How to Order |
|

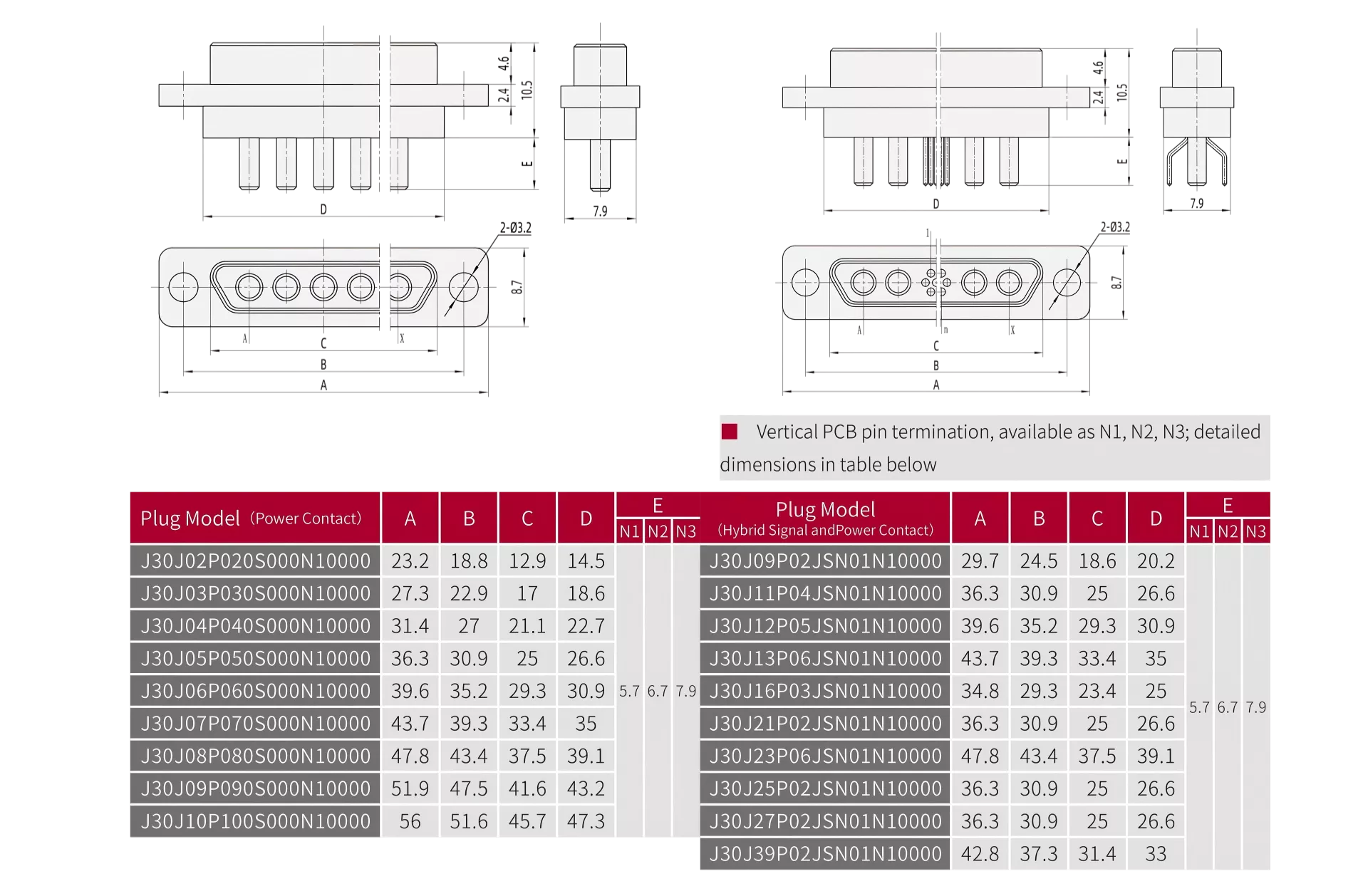

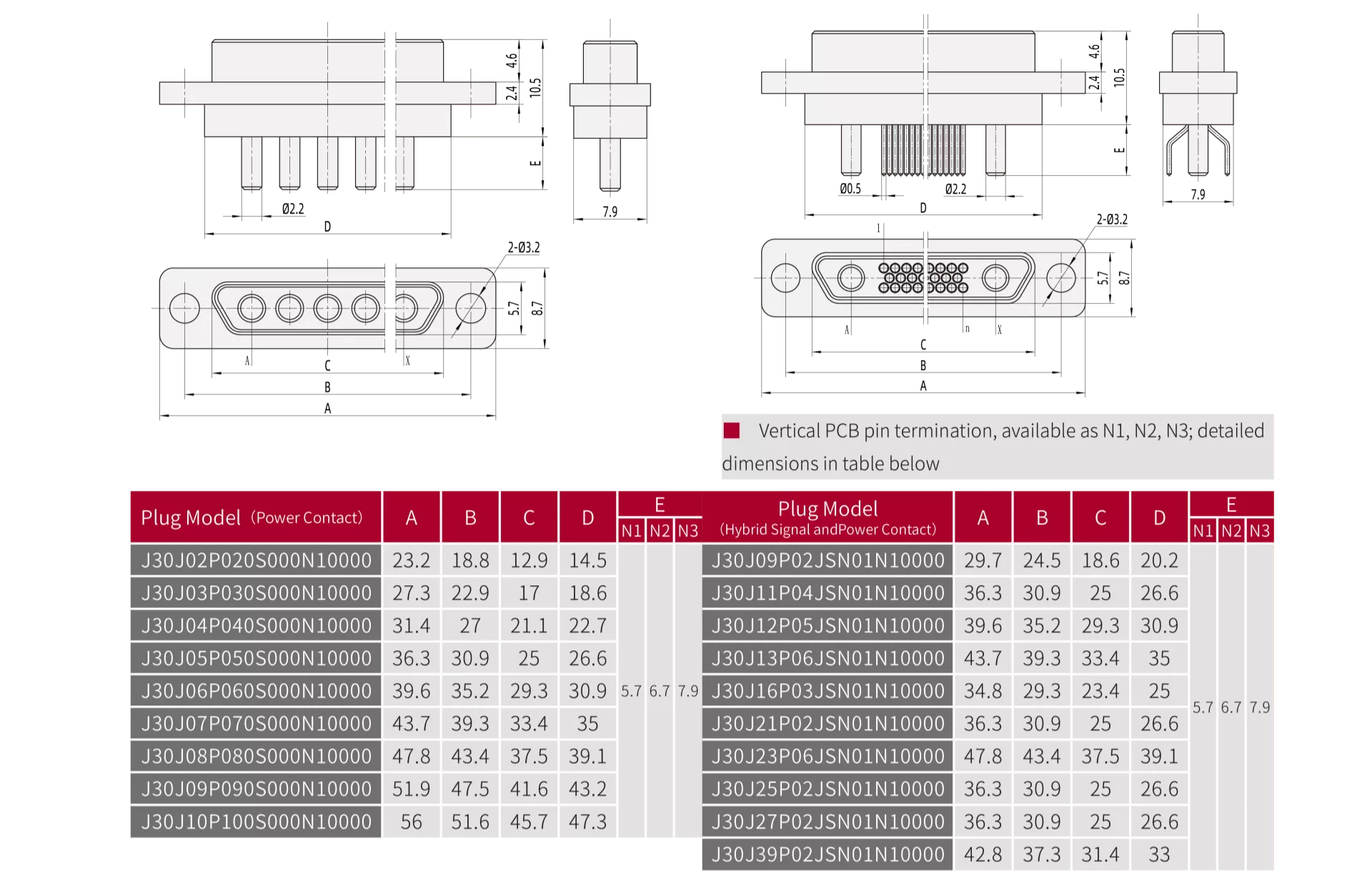

| ∎ Dimensions |
|

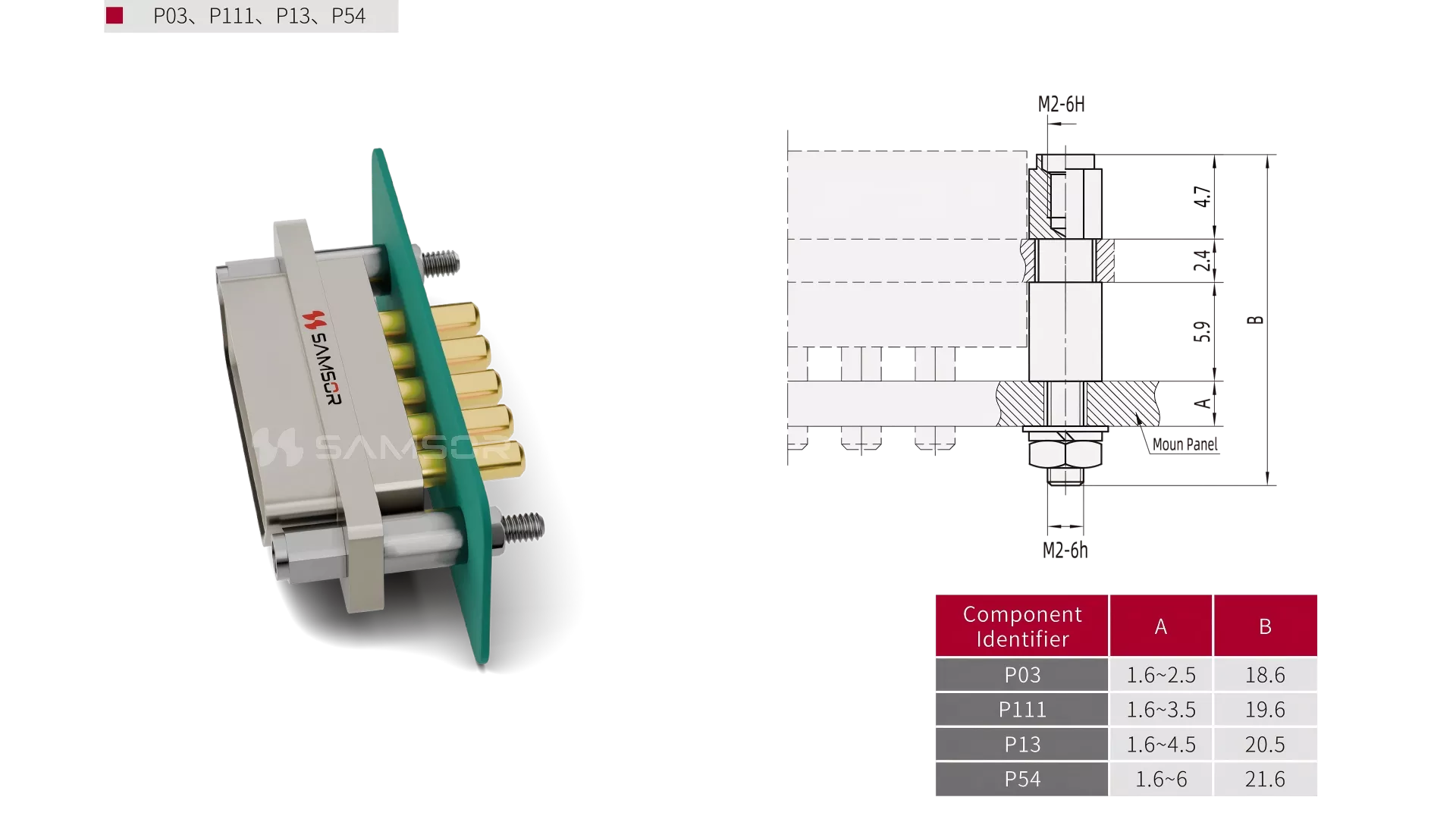

| ∎ Hardware |
|

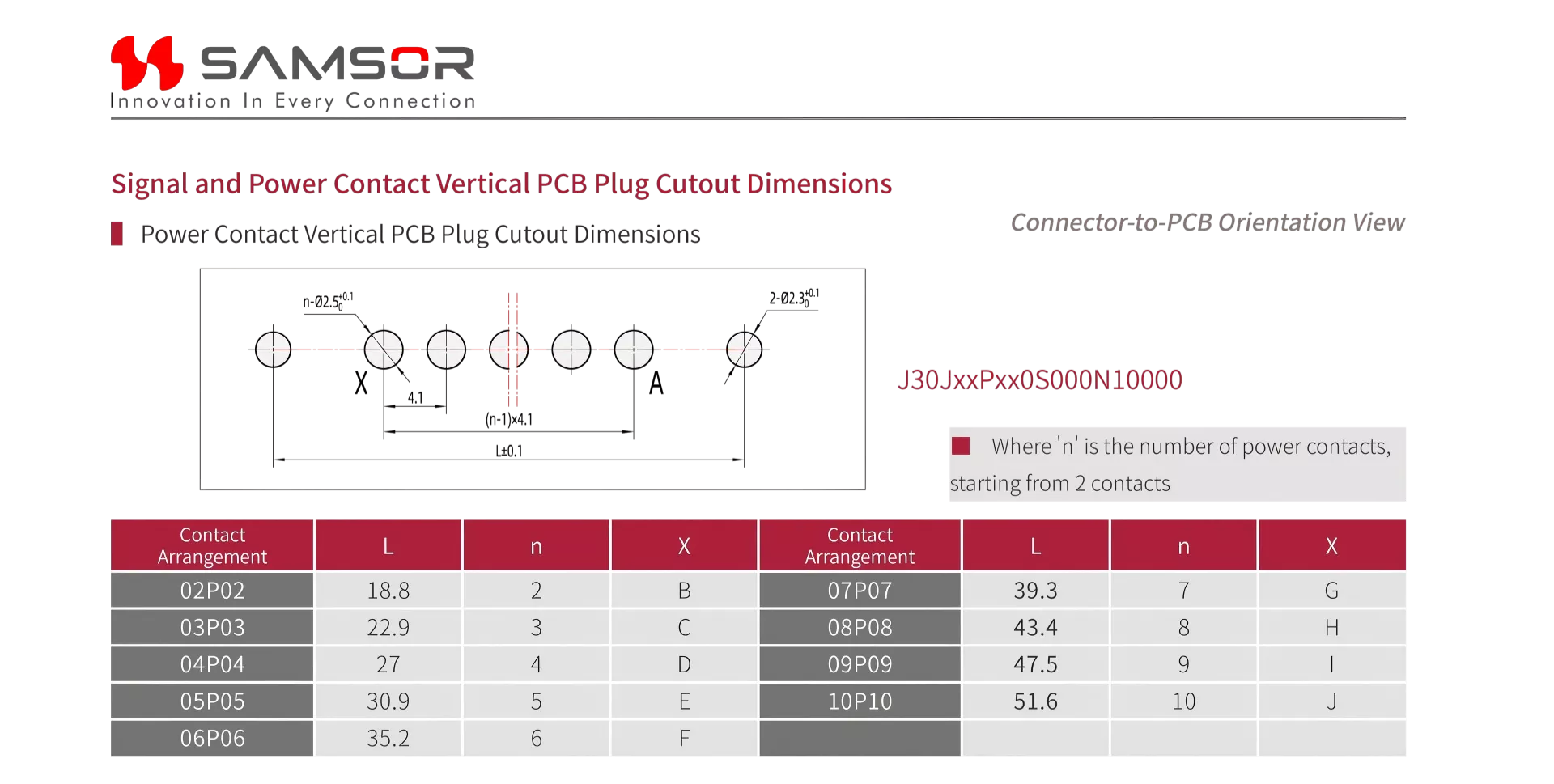

| ∎ PCB Layouts |
|
