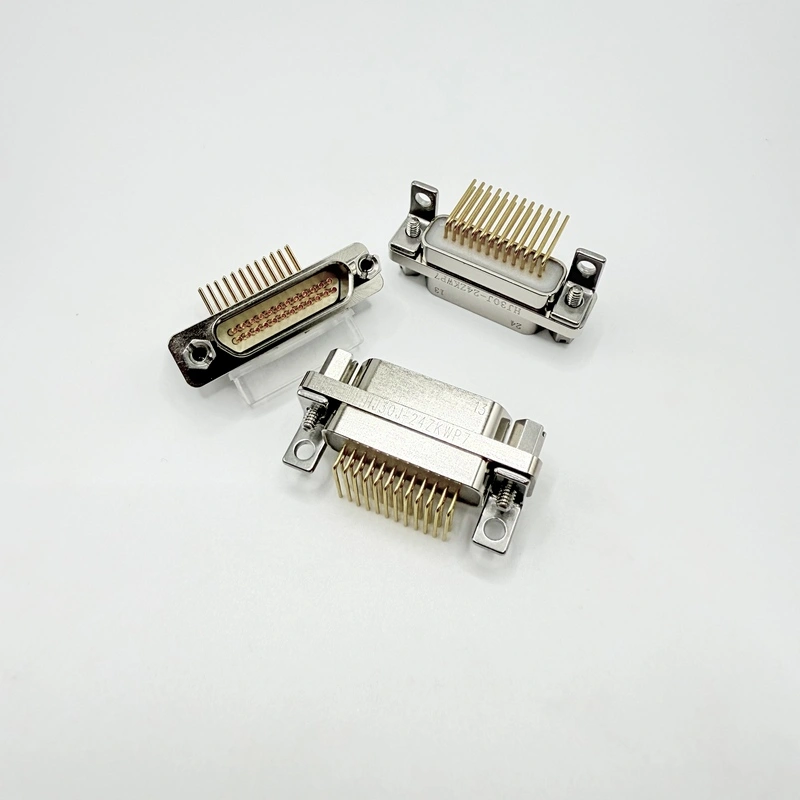

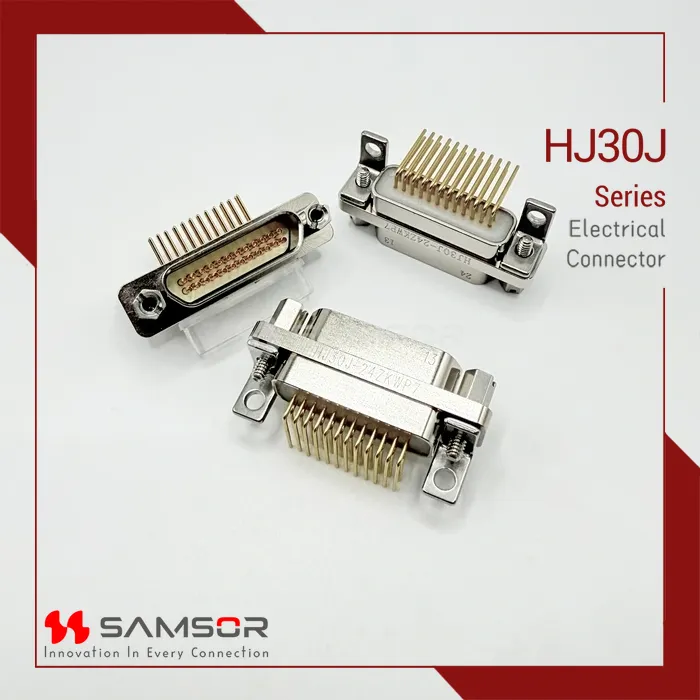

HJ30J-24ZKWP7| ∎ HJ30J Series Introduction |
| ● Features a metal shielded housing with a transmission rate of 1.65 Gbps |
| ● Number of Contacts: 12, 18, 24, 36, 55 and 100 pins |
| ● Adopts stranded-wire elastic contact pins (TwistPin) with a 1.27mm x 1.27mm pitch, offering high contact density and more reliable performance |
| ● Standard wire supply is Category 5e silver-plated high-temperature network cable. The ground wire is 0.15mm² white silver-plated high-temperature lapped wire |
| ● Product complies with GJB2446A requirements (equivalent to U.S. Military Standard MIL-C-83513), implemented per enterprise standard: Q/SS 106-2017 |
| ∎ Performance Specifications | |
| Operating Temperature: -55℃～+125℃ | Vibration: 10Hz～2000Hz 196m/s² |
| Random vibration: Power density 0.4G²/Hz. The total acceleration-root-mean square is 23.1G | Shock: 735m/s² 11ms |
| Rated Current: 3A | Contact Resistance: ≤10mΩ |
| Insulation Resistance: ≥5000MΩ | Dielectric Withstand Voltage: 800V |
| Durability: 500 times | Characteristic Impedance: 100±15Ω |
| Near-End Crosstalk: Not less than 30dB within 100ps | Transmission Performance: Transmission rate is 1.65Gbps |

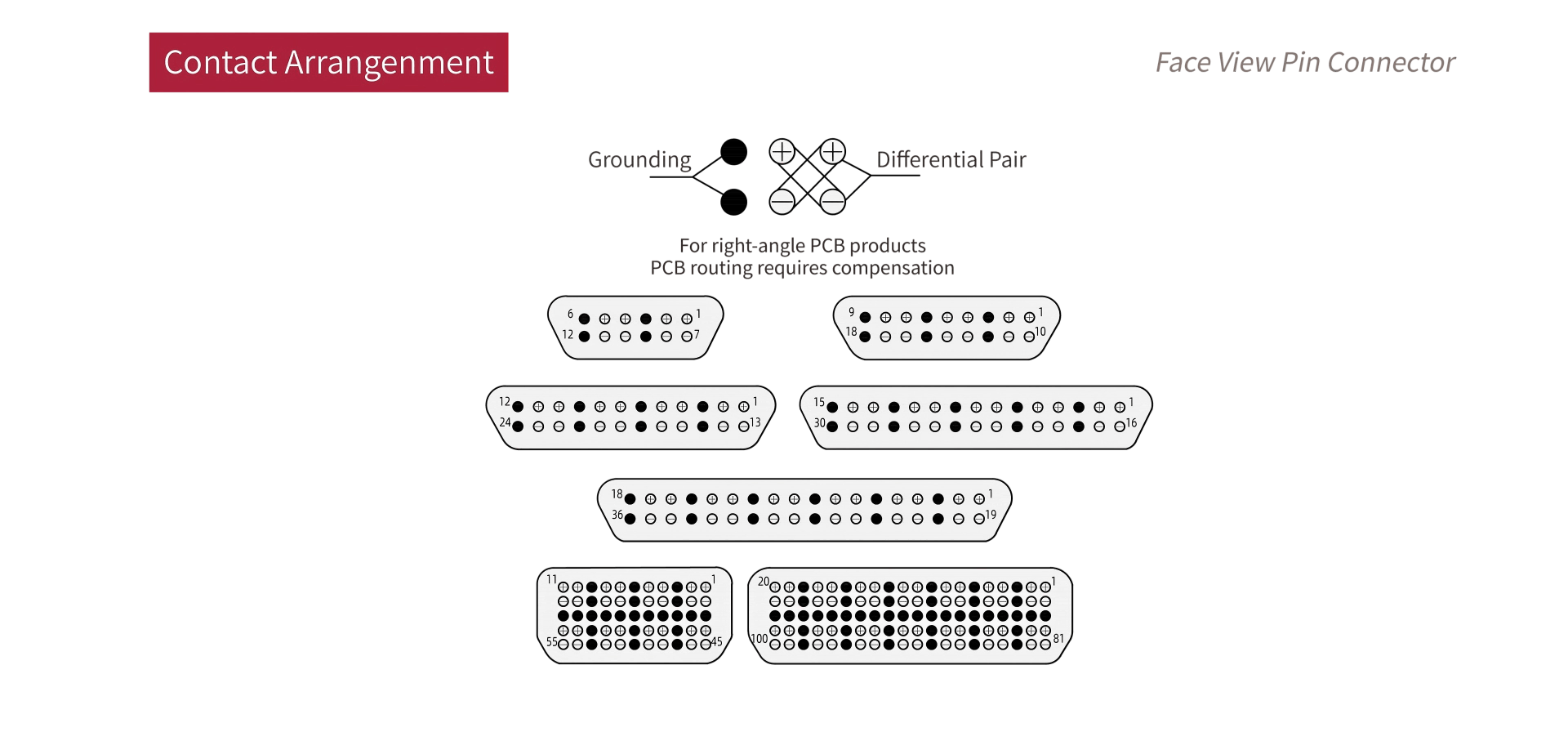

| ∎ Contact Arrangement (Face View Pin Connector) |
|

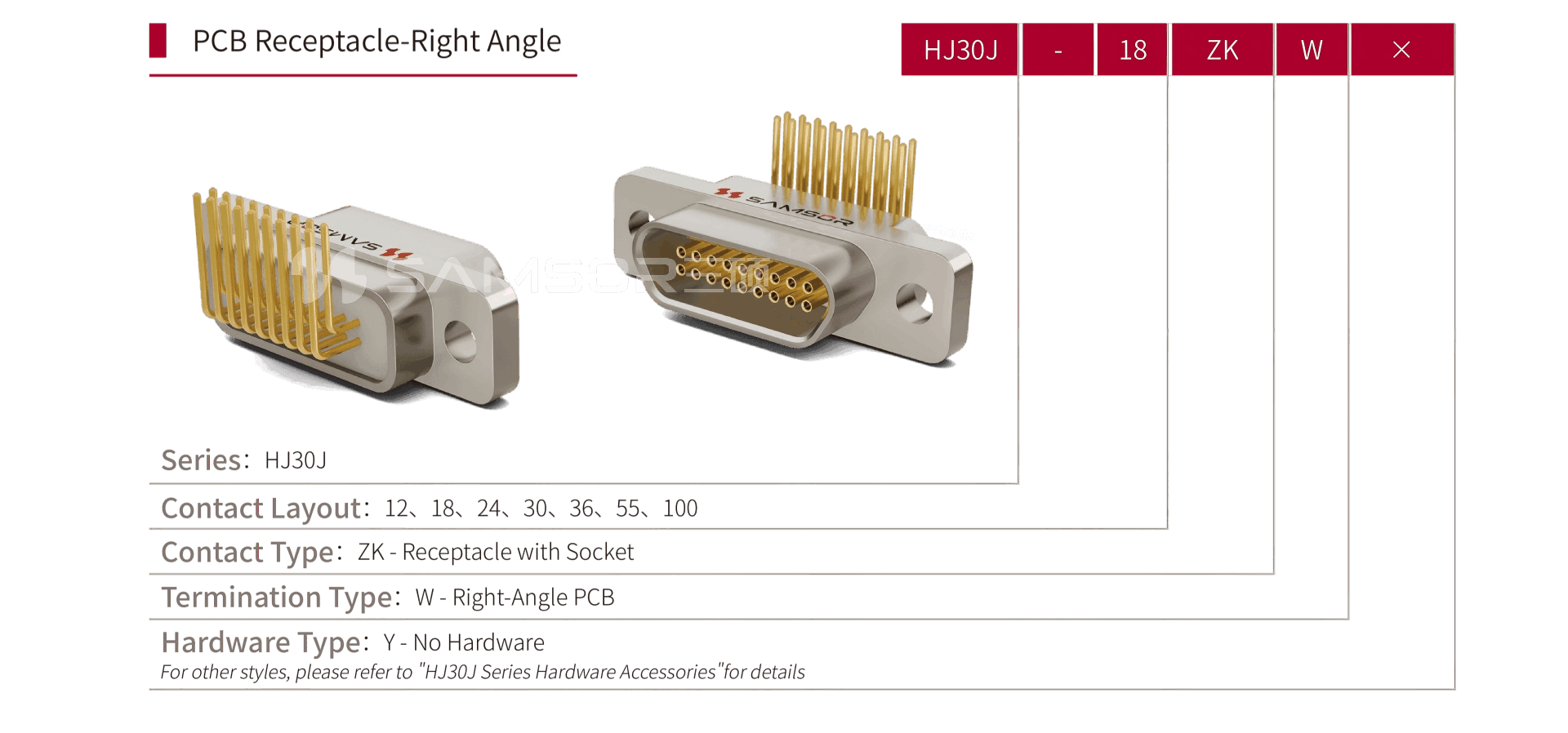

| ∎ How to Order |
|

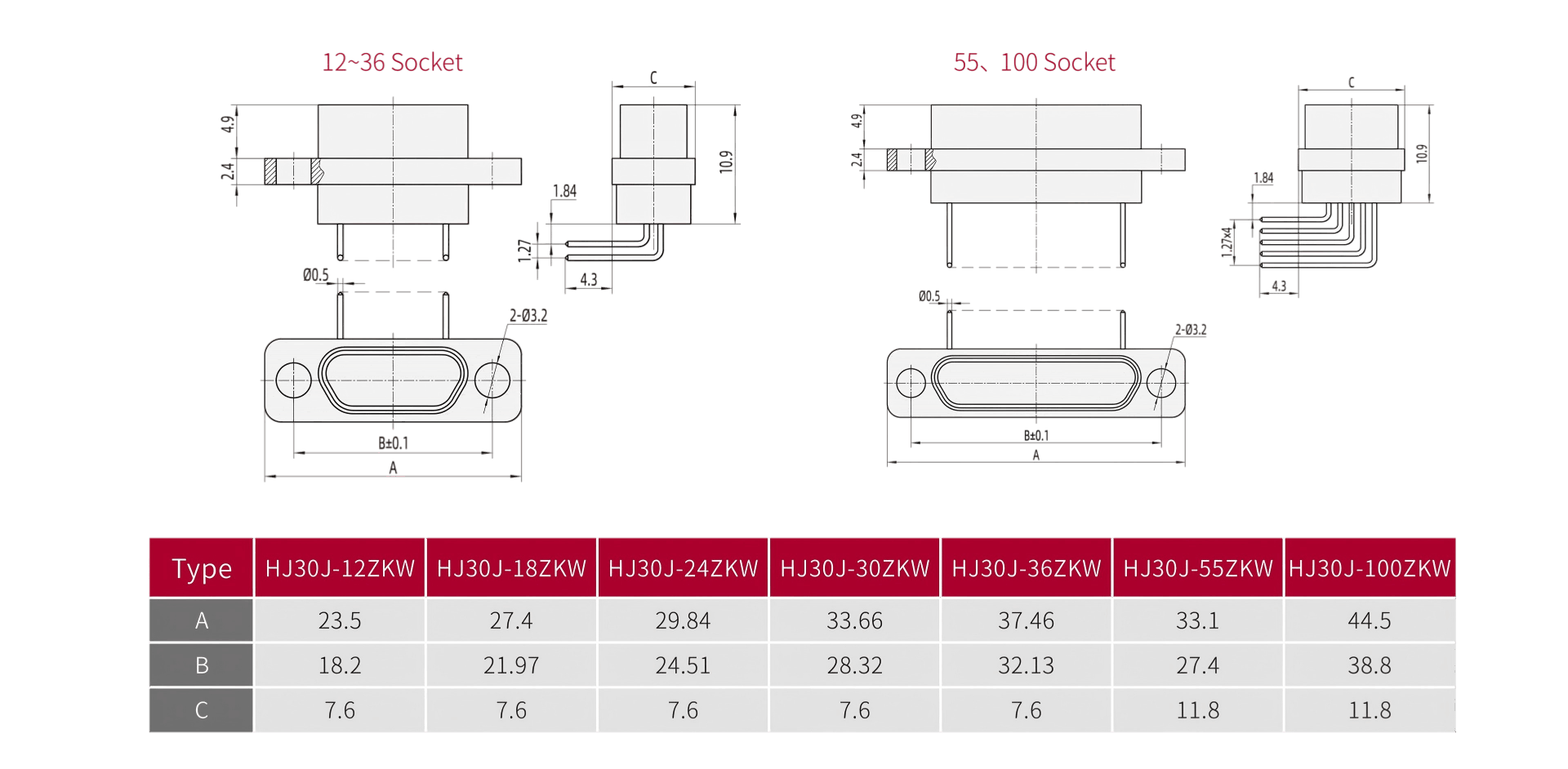

| ∎ Dimensions |
|

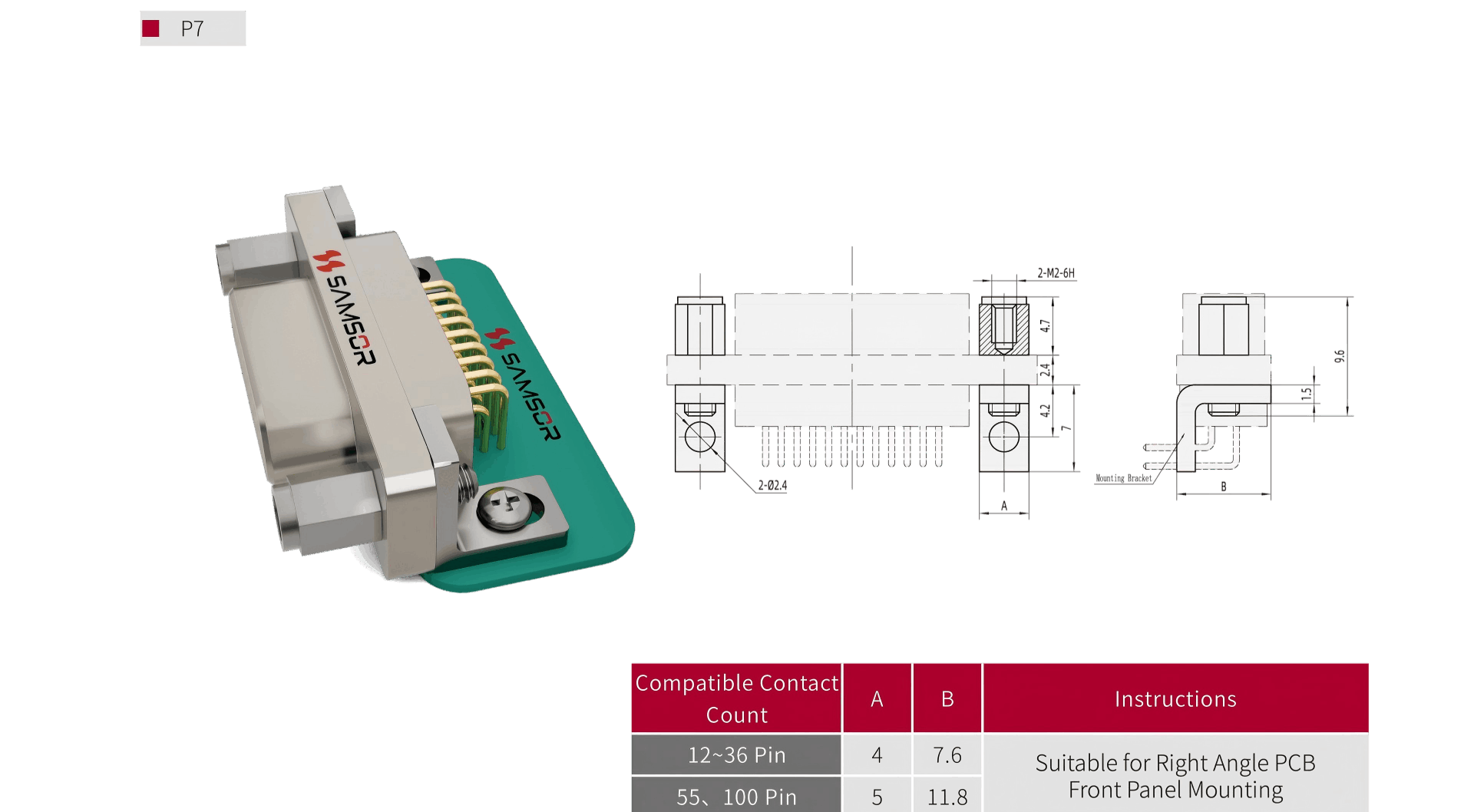

| ∎ Hardware |
|
| ∎ PCB Layouts |
|
